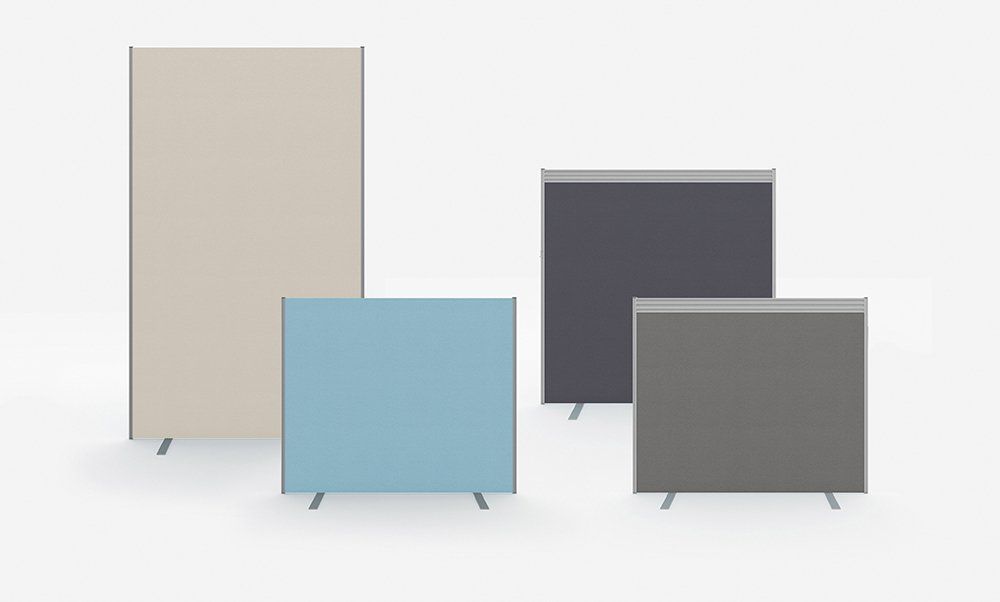

THE FREESTANDING RANGE

D30 FABRIC, GLAZED AND TOOLRAIL SCREENS

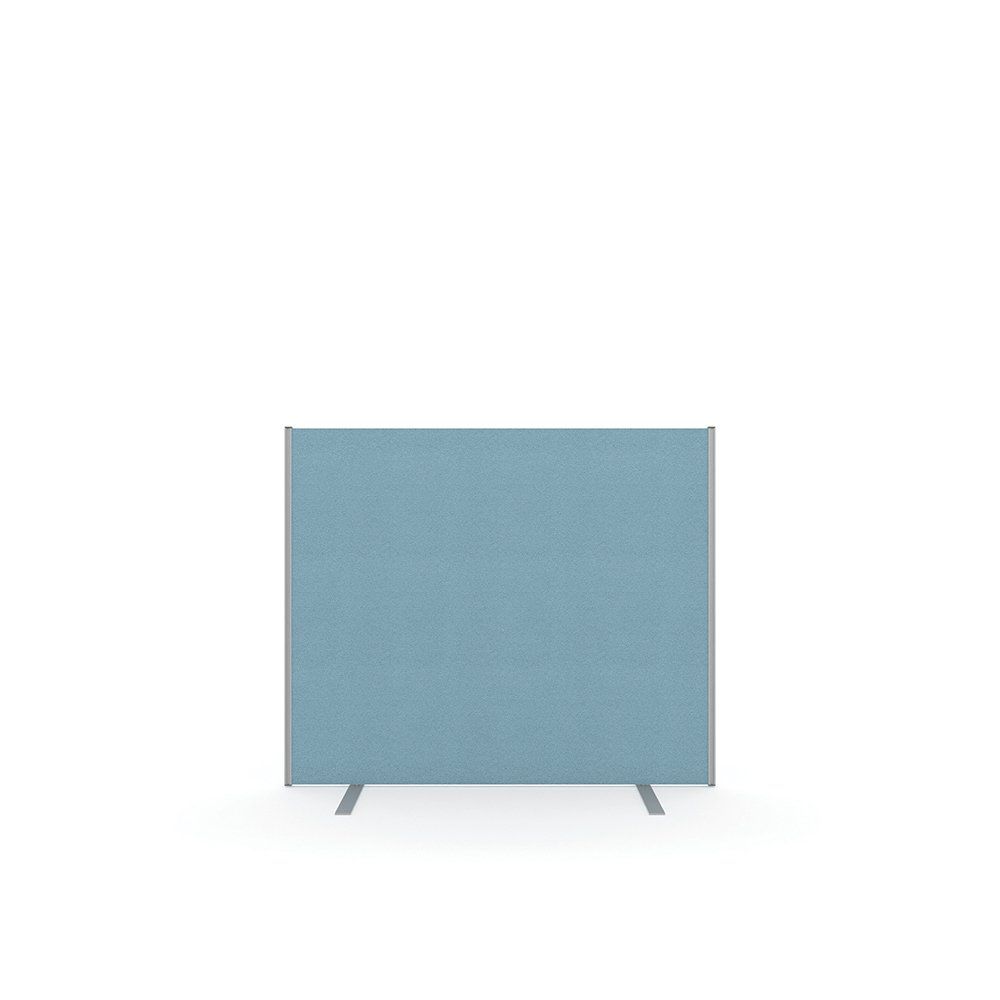

1000 mm HIGH

W800, 1000, 1200, 1400, 1500,

1600, 1800, 2000 mm

CODE: D30/11#

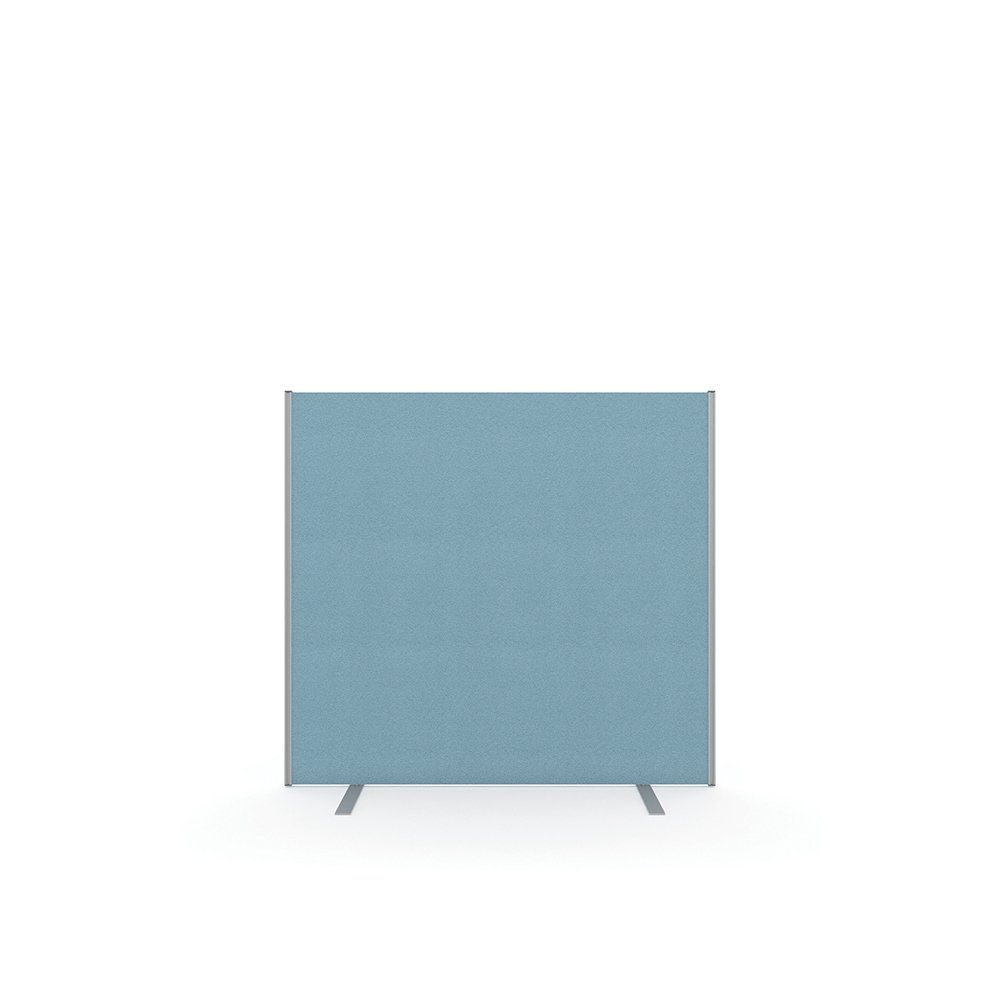

1100 mm HIGH

W800, 1000, 1200, 1400, 1500,

1600, 1800, 2000 mm

CODE: D30/12#

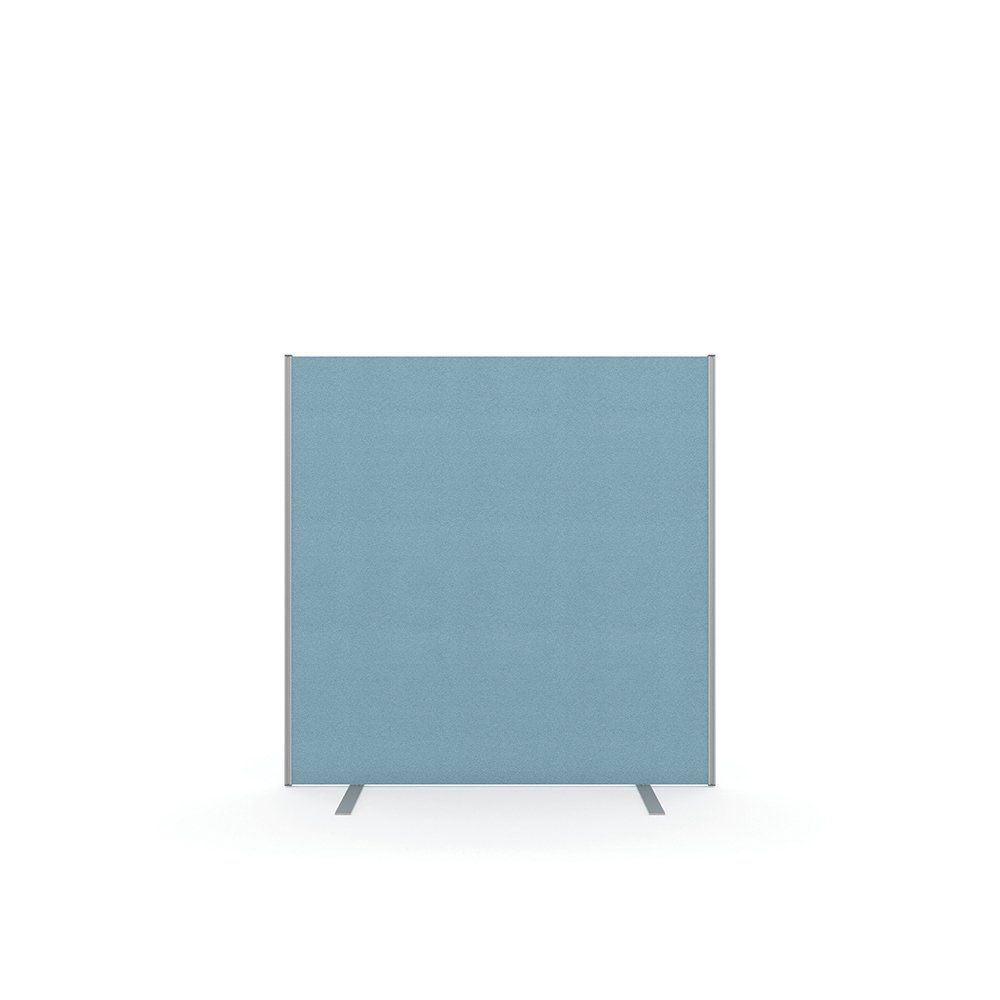

1200 mm HIGH

W800, 1000, 1200, 1400, 1500,

1600, 1800, 2000 mm

CODE: D30/15#

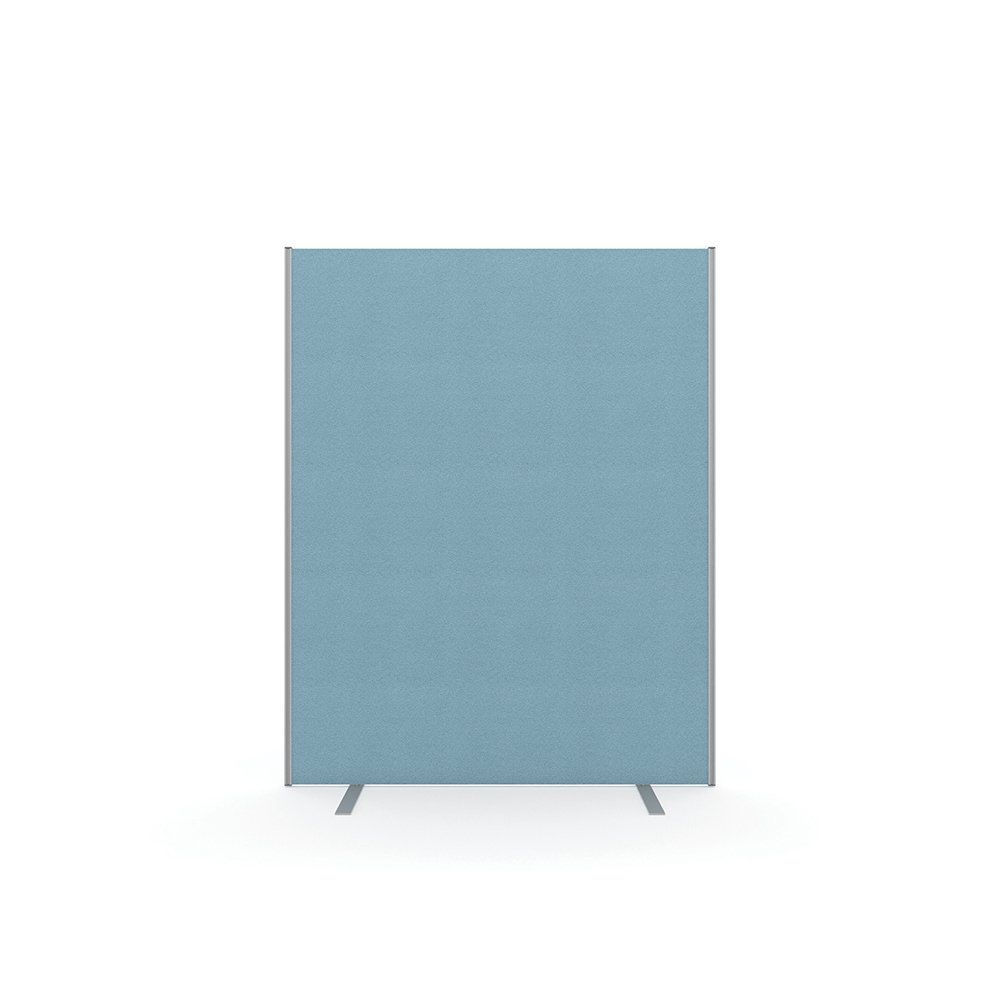

1500 mm HIGH

W800, 1000, 1200, 1400, 1500,

1600, 1800 mm

CODE: D30/16#

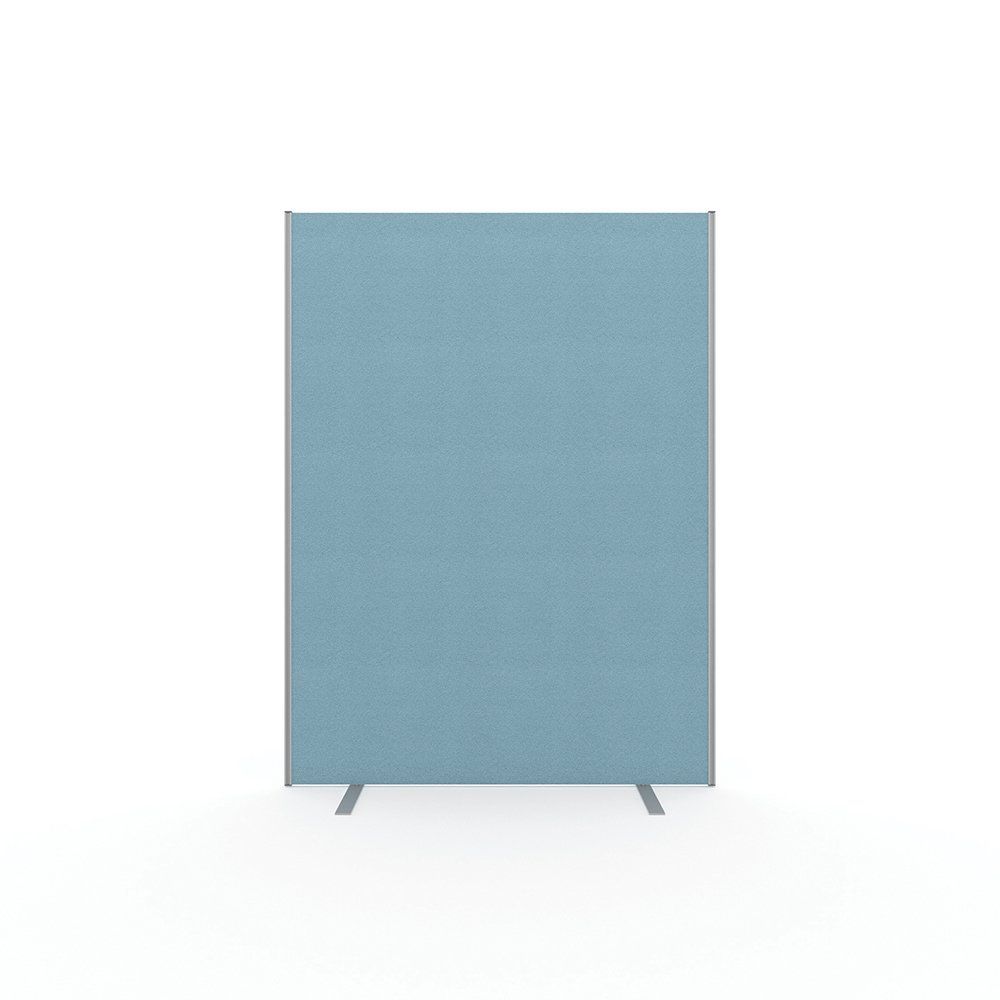

1600 mm HIGH

W800, 1000, 1200, 1400, 1500, 1600 mm

CODE: D30/18#

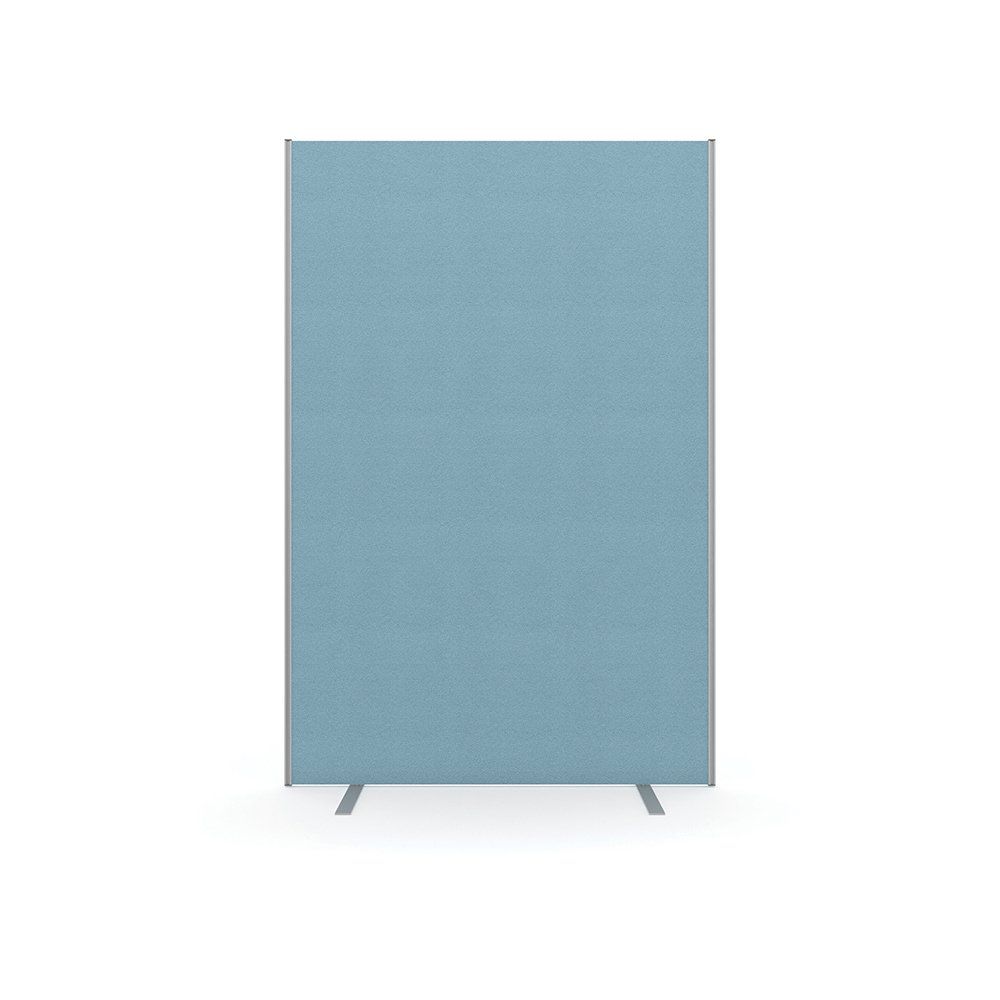

1800 mm HIGH

W800, 1000, 1200, 1400, 1500,

1600, 1800, 2000 mm

CODE: D30/10#

# IN CODE REFERS TO WIDTH CHOICE.

A 1000 HIGH, 800 WIDE FREESTANDING FLAT SCREEN WOULD BE D30/108

AN 1800 HIGH, 1500 WIDE FREESTANDING FLAT SCREEN WOULD BE D30/1815

D30 HIGH LEVEL FREESTANDING FLAT SCREENS

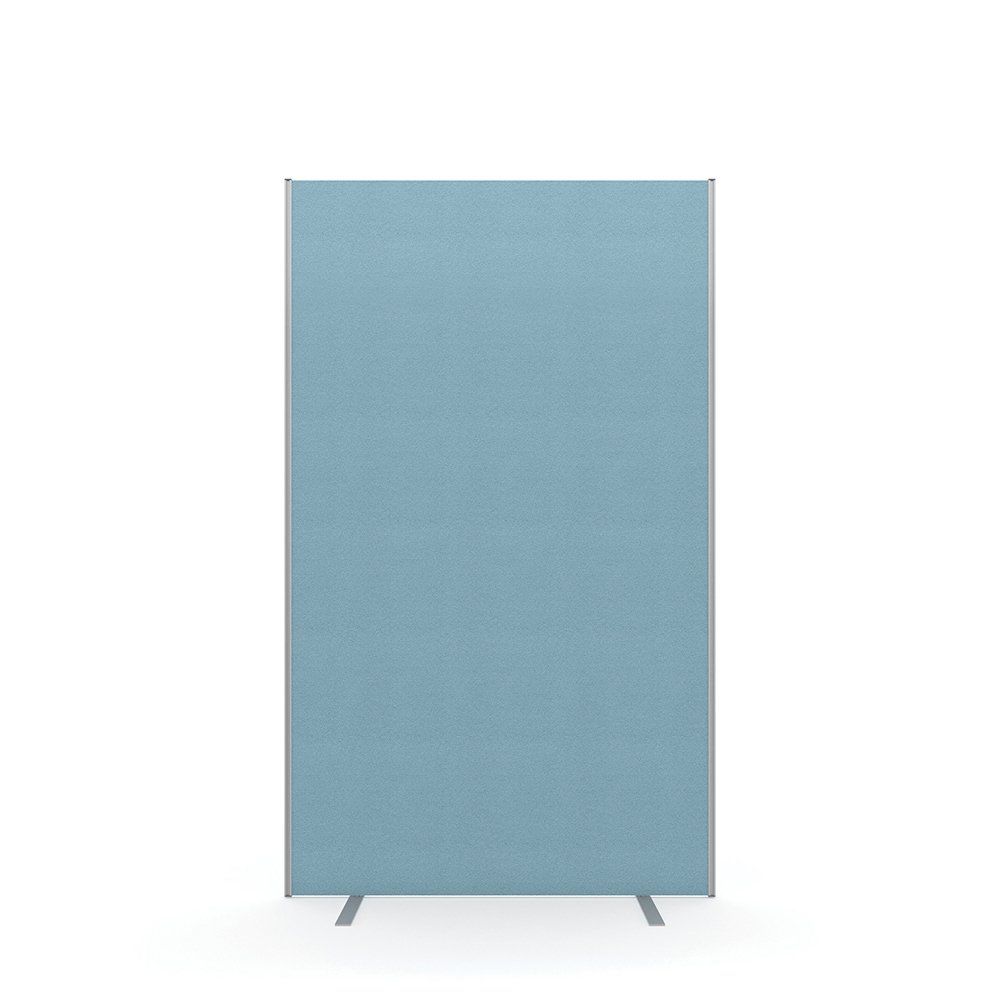

2000 mm HIGH

W800, 1000, 1200, 1400, 1500, 1600 mm

CODE: D30/20#

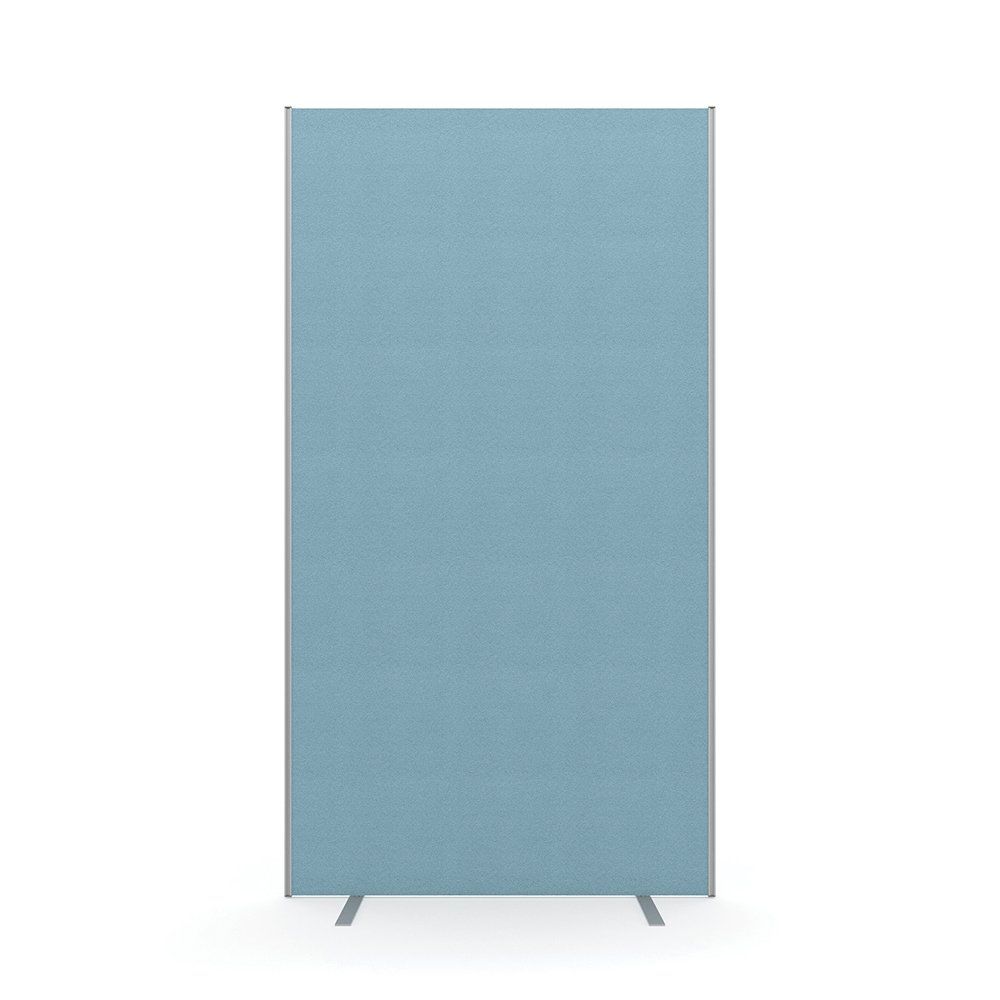

2200 mm HIGH

W800, 1000, 1200, 1400, 1500, 1600 mm

CODE: D30/22#

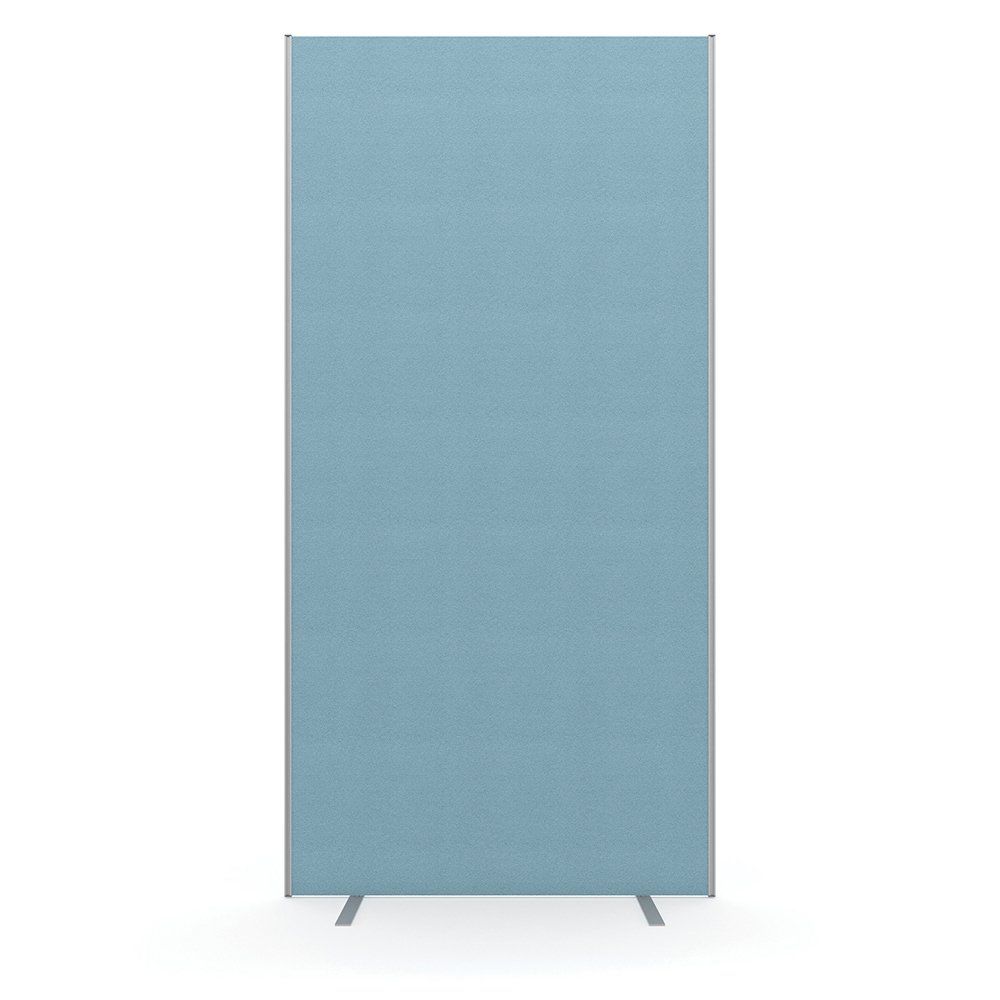

2400 mm HIGH

W800, 1000, 1200, 1400 mm

CODE: D24/11#

We strongly recommend that all high level screens be fixed to the floor using disc floor fix feet and that all screen runs be secured to a wall using a wall anchor post.


# IN CODE REFERS TO WIDTH CHOICE.

A 2000 HIGH, 800 WIDE FREESTANDING FLAT SCREEN WOULD BE D30/208

A 2400 HIGH, 1400 WIDE FREESTANDING FLAT SCREEN WOULD BE D30/2414

D30 FREESTANDING TOOL RAIL SCREENS

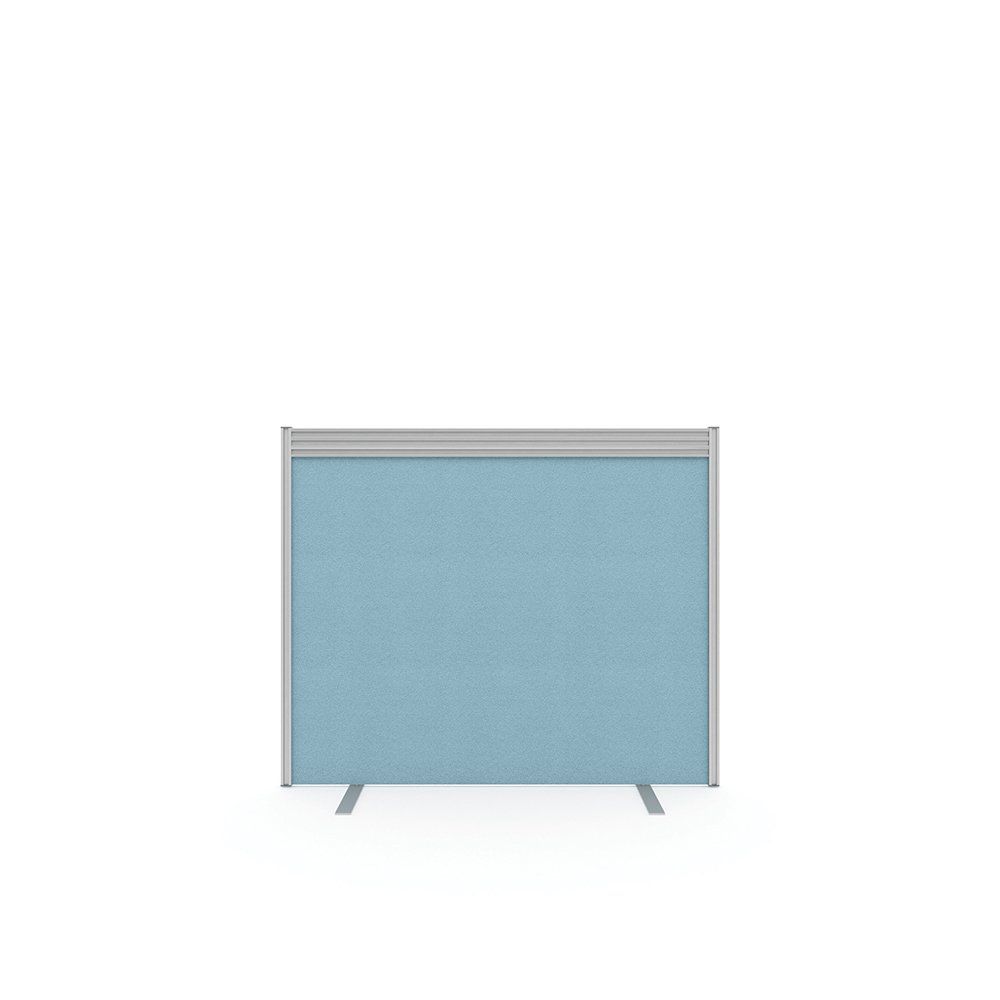

1000mm HIGH WITH TOOLRAIL

W800, 1000, 1200, 1400, 1500,

1600, 1800 mm

CODE: D30/10#A

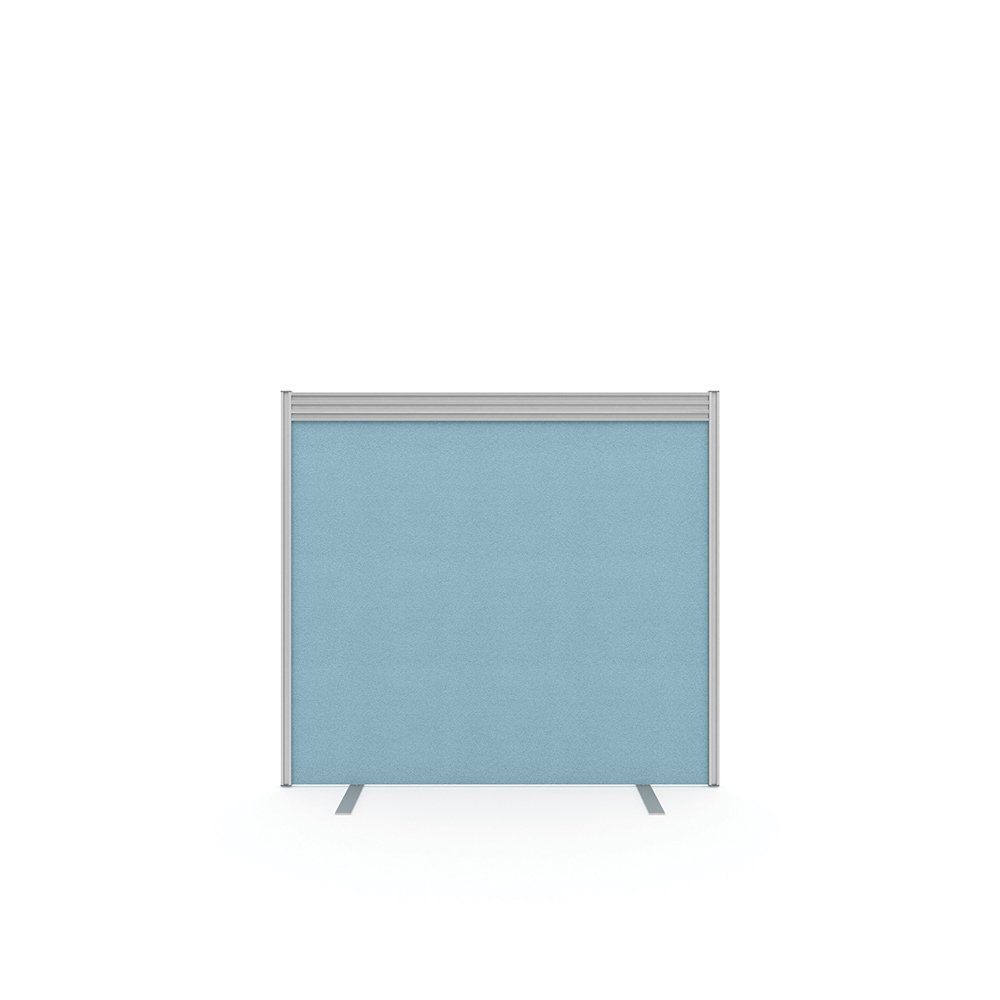

1100mm HIGH WITH TOOLRAIL

W800, 1000, 1200, 1400, 1500,

1600, 1800 mm

CODE: D30/11#A

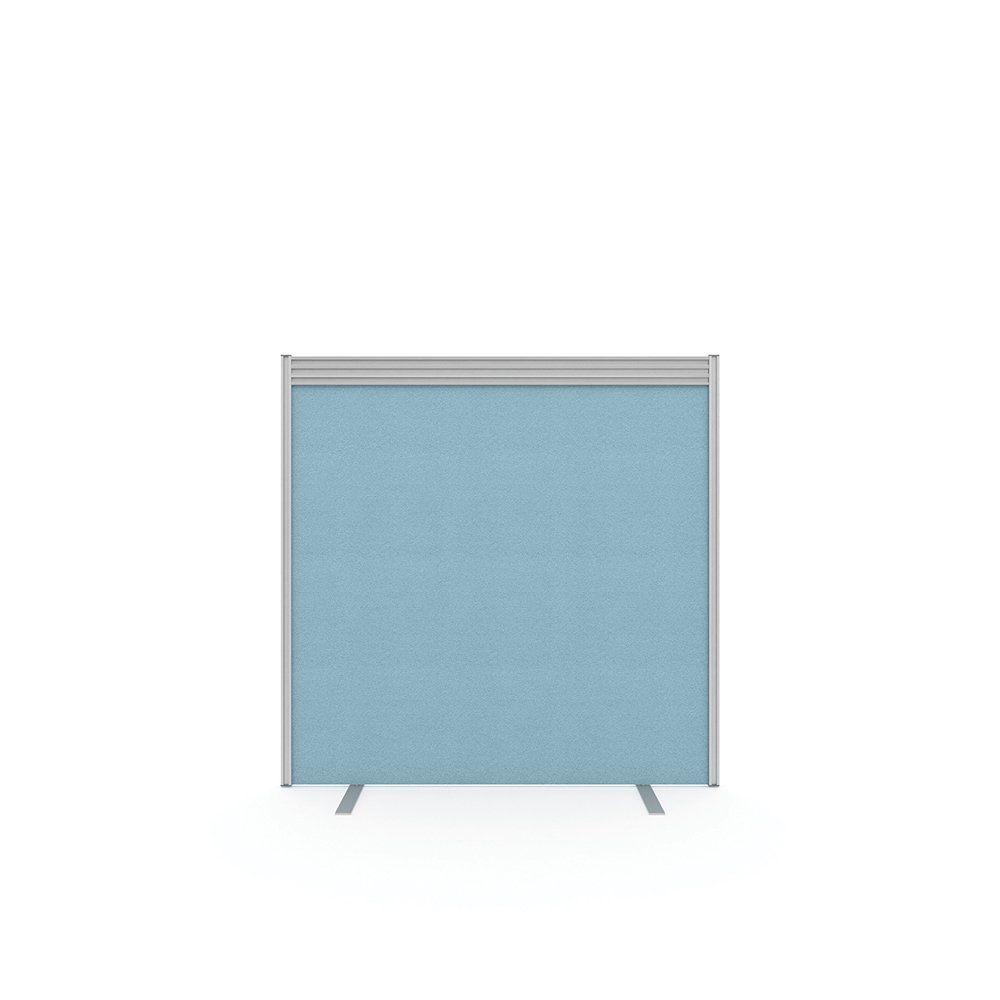

1200mm HIGH WITH TOOLRAIL

W800, 1000, 1200, 1400, 1500,

1600, 1800 mm

CODE: D30/12#A

# IN CODE REFERS TO WIDTH CHOICE.

A 1000 HIGH, 800 WIDE TOOLRAIL SCREEN WOULD BE D30/108A

A 1200 HIGH, 1400 WIDE TOOLRAIL SCREEN WOULD BE D30/1214A

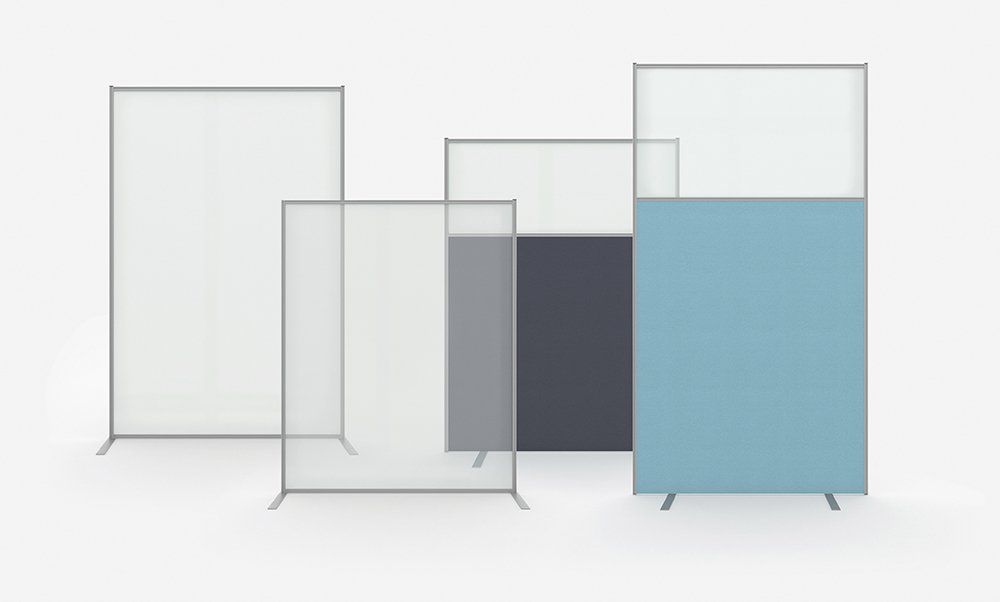

D30 GLAZED & TOP GLAZED FREESTANDING SCREENS

D20 FABRIC AND LAMINATE SCREENS

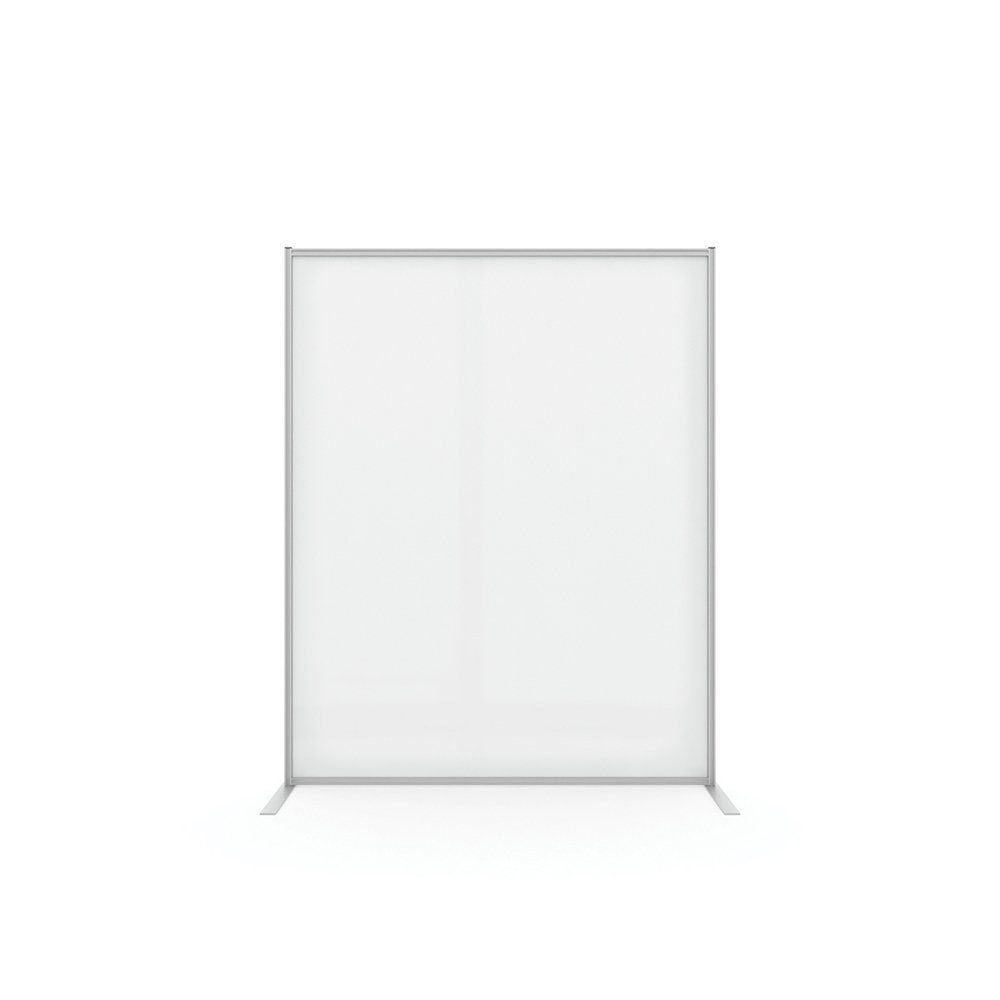

1500 mm HIGH GLAZED

W800, 1000, 1200 mm

CODE: D30/15#FG

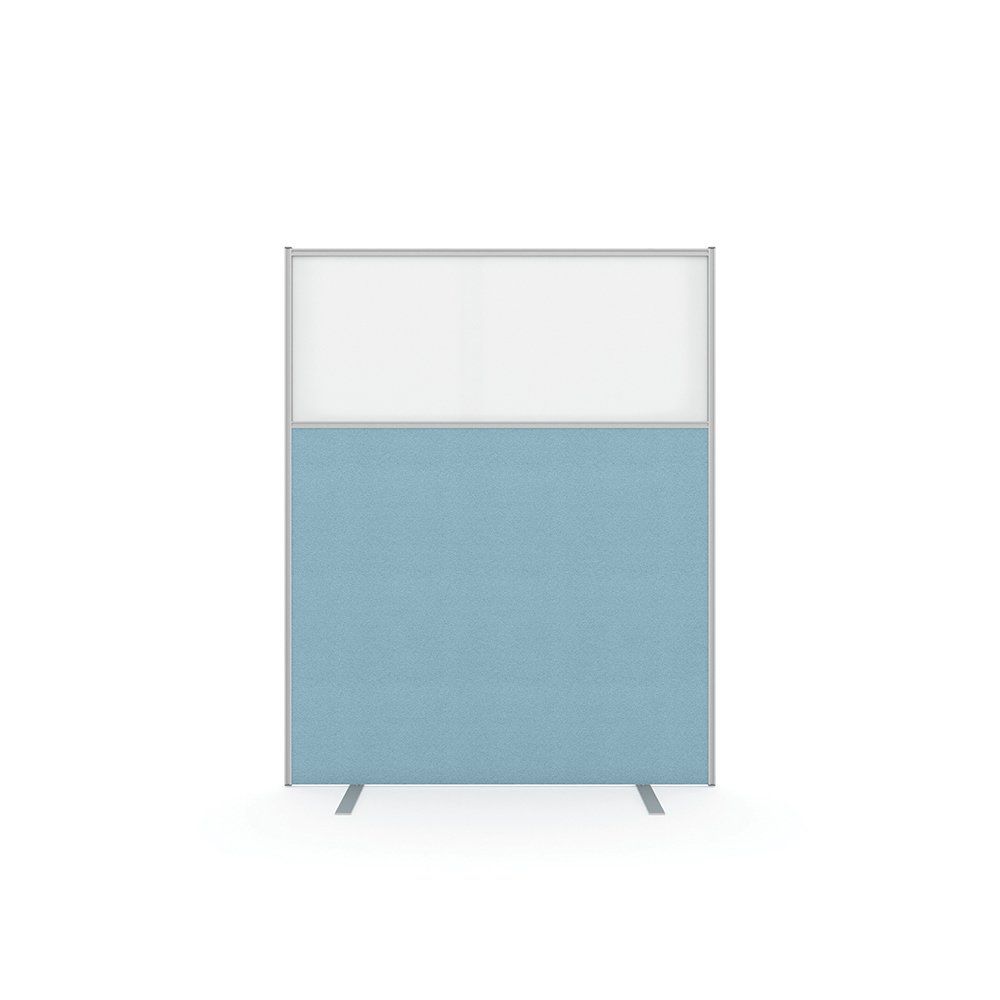

1500 mm HIGH TOP GLAZED

W800, 1000, 1200, 1400, 1500, 1600 mm

CODE: D30/15#TG

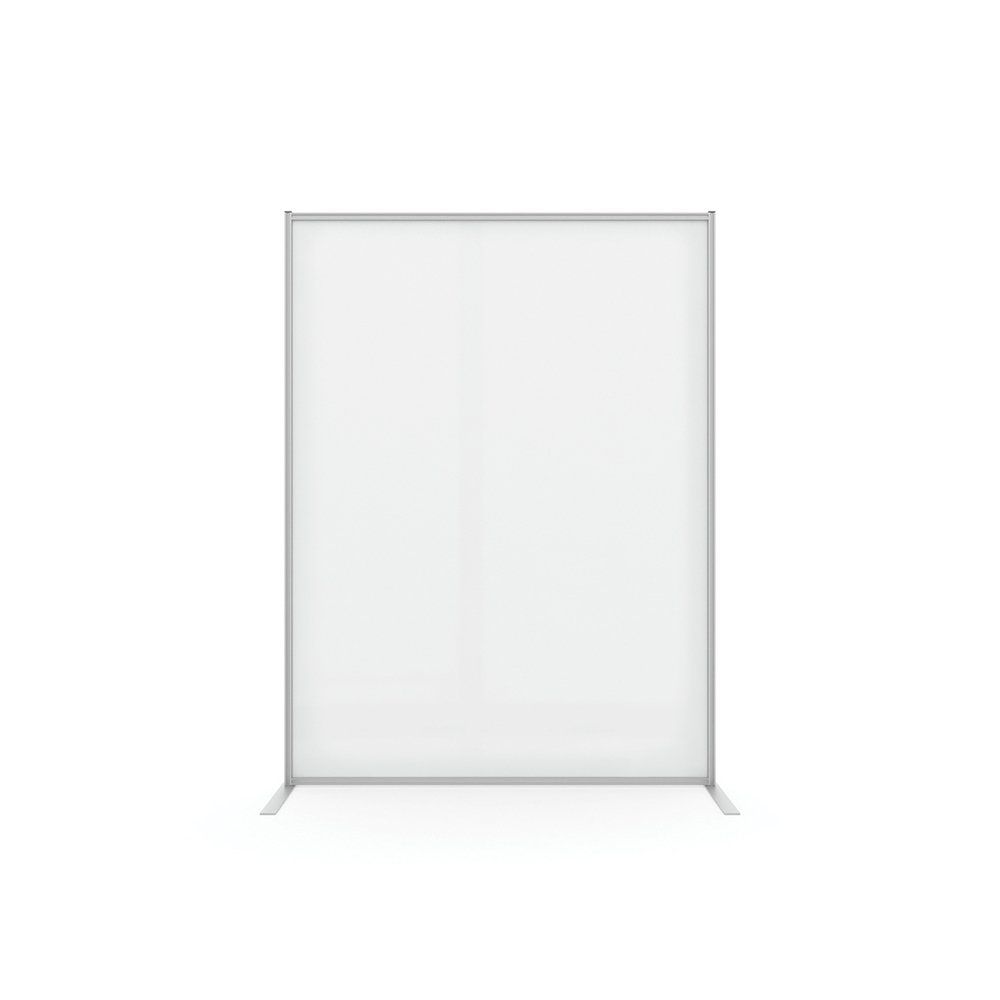

1600 mm HIGH GLAZED

W800, 1000, 1200 mm

CODE: D30/16#FG

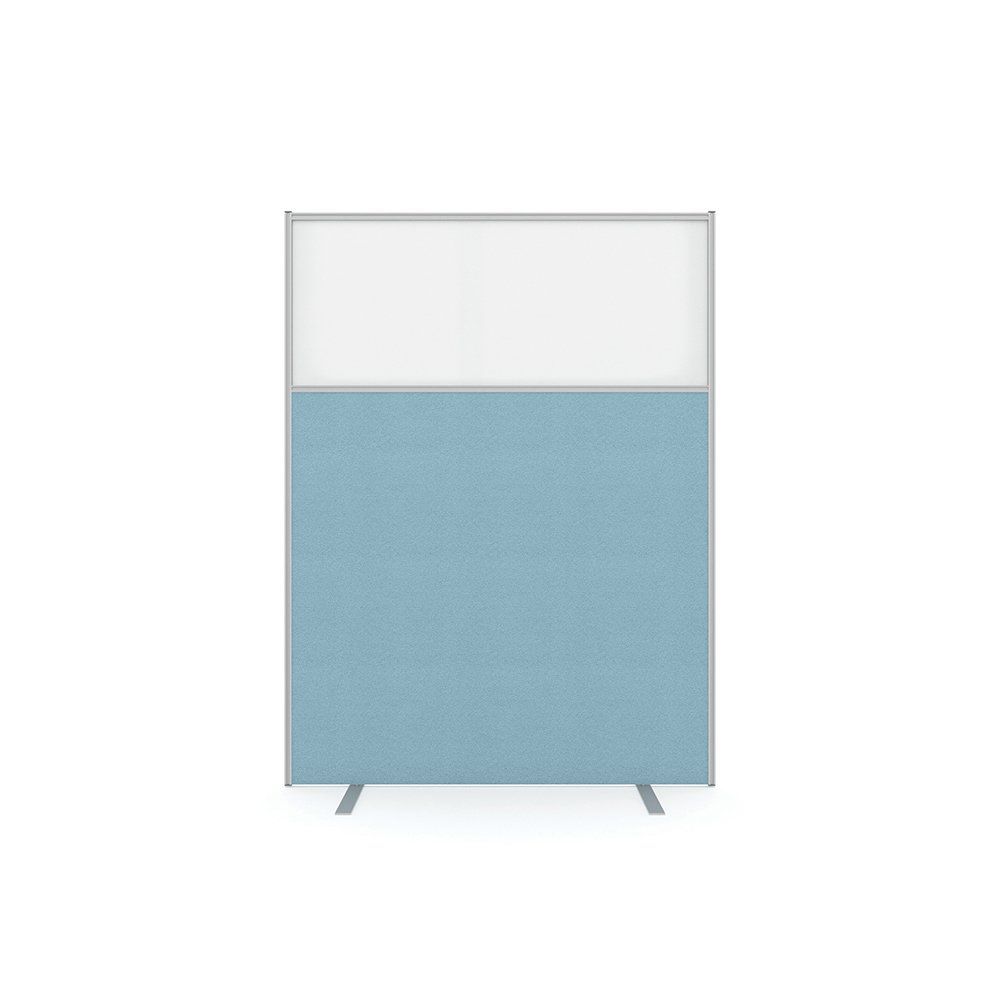

1600 mm HIGH TOP GLAZED

W800, 1000, 1200, 1400, 1500, 1600 mm

CODE: D30/16#TG

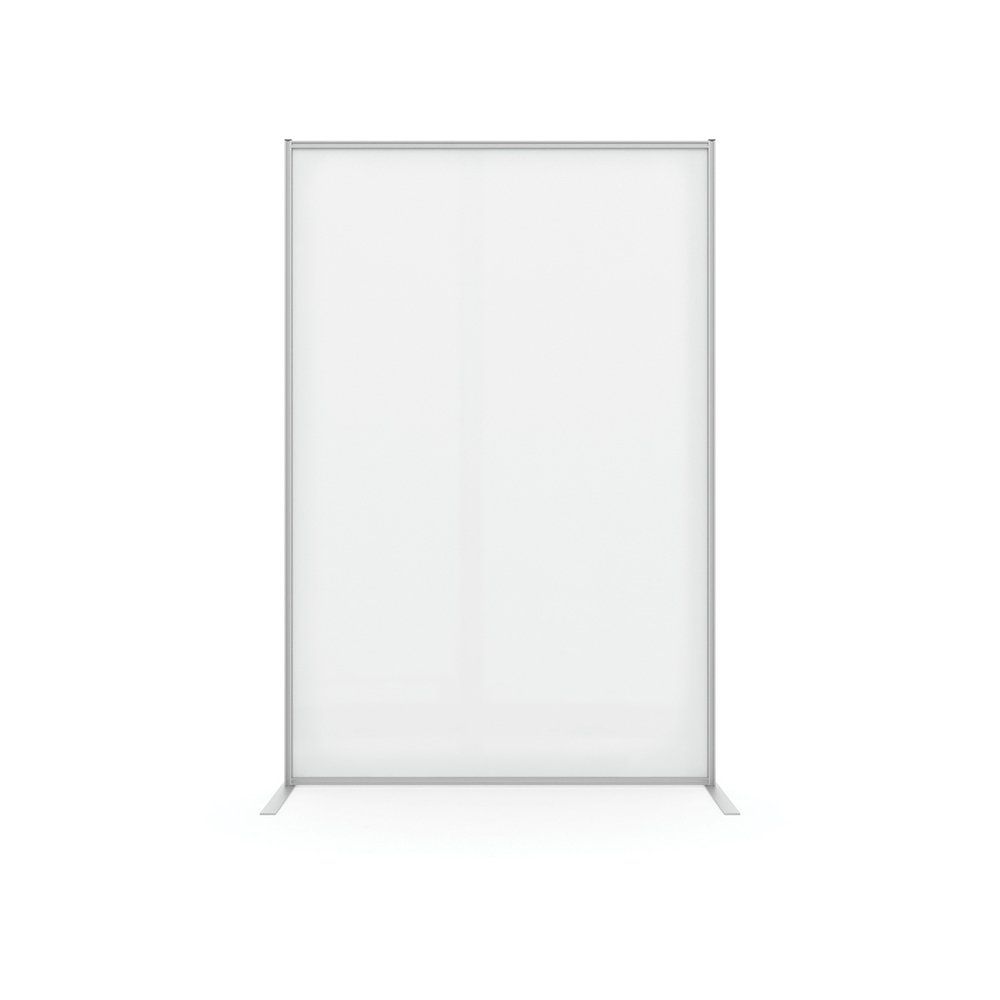

1800 mm HIGH GLAZED

W800, 1000, 1200 mm

CODE: D30/18#FG

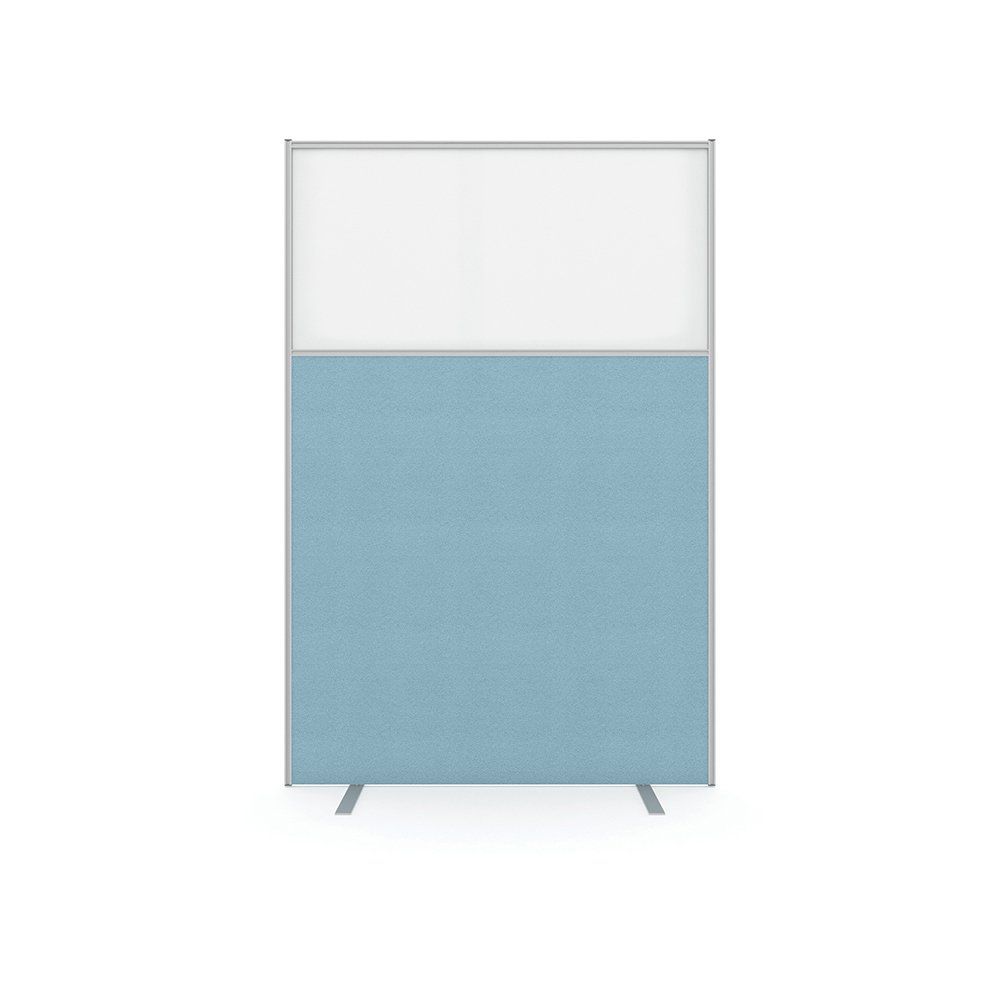

1800 mm HIGH TOP GLAZED

W800, 1000, 1200, 1400, 1500, 1600 mm

CODE: D30/18#TG

TOP GLAZED SCREENS ARE SUPPLIED AS STANDARD WITH TOP THIRD AS FROSTED GLAZING UNLESS SPECIFIED OTHERWISE.

# IN CODE REFERS TO WIDTH CHOICE.

A 1500 HIGH,  W 800 FULL-GLAZED SCREEN WOULD BE D30/158FG

A 1600 HIGH, W1200 TOP-GLAZED SCREEN WOULD BE D30/1812TG


D30 HIGH LEVEL TOP GLAZED FREESTANDING SCREENS

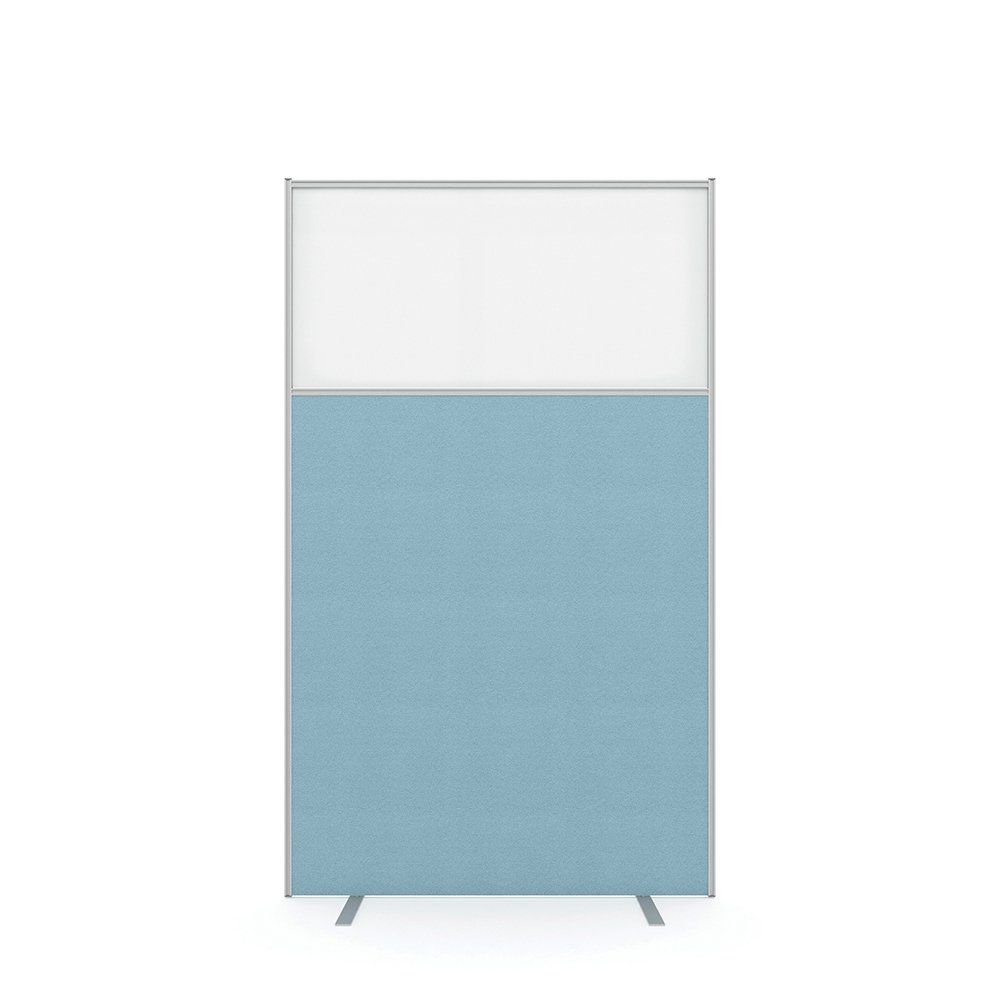

2000 mm HIGH TOP GLAZED

W800, 1000, 1200, 1400, 1500, 1600 mmCODE: D30/20#TG

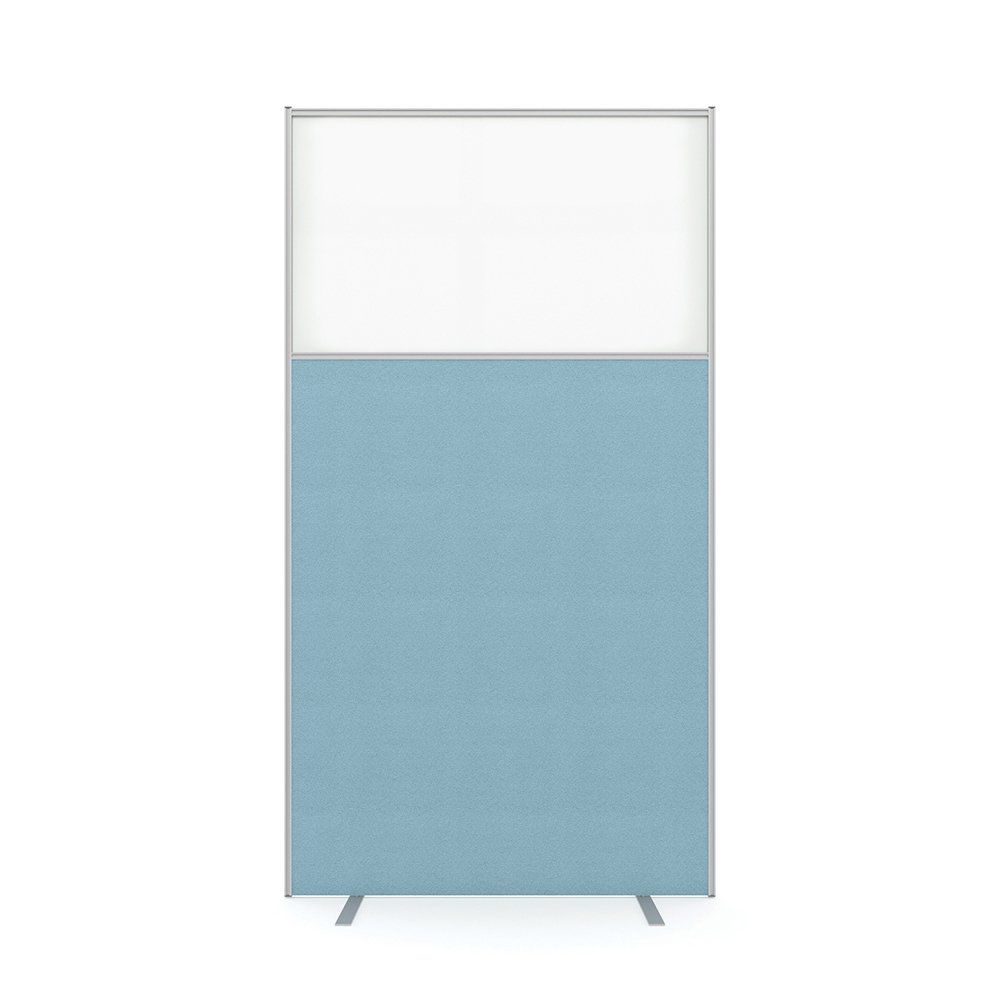

2200 mm HIGH TOP GLAZED

W800, 1000, 1200, 1400, 1500, 1600 mm

CODE: D30/22#TG

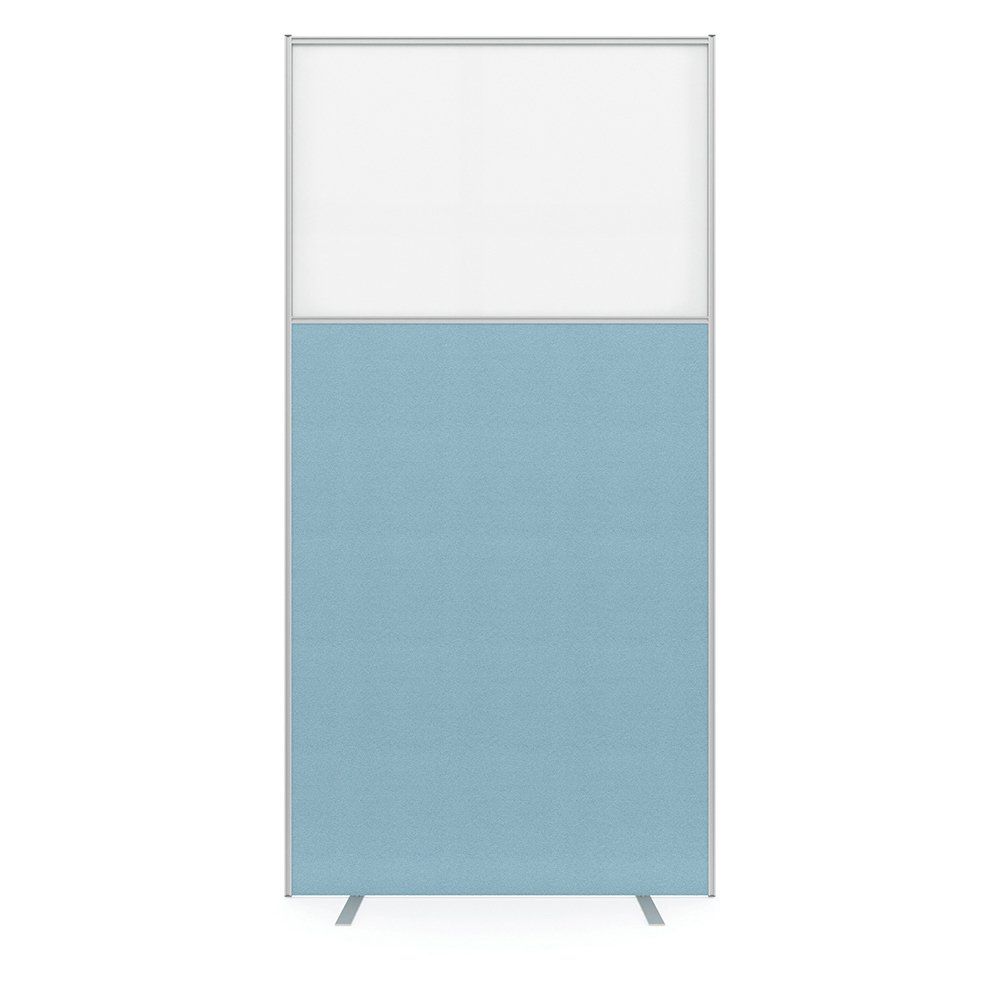

2400 mm HIGH TOP GLAZED

W800, 1000, 1200, 1400, 1500 mm

CODE: D30/24#TG

TOP GLAZED SCREENS ARE SUPPLIED AS STANDARD WITH TOP THIRD AS FROSTED GLAZING UNLESS SPECIFIED OTHERWISE.

# IN CODE REFERS TO WIDTH CHOICE.

A2000 HIGH,  W 800 TOP-GLAZED SCREEN WOULD BE D30/208TG

A 2400 HIGH, W1200 TOP-GLAZED SCREEN WOULD BE D30/2412FL

D30 FREESTANDING SCREENS SPECIFICATION

STANDARD SPECIFICATION


  • Silver aluminium posts only.
  • Silver post infills.
  • 32mm carcass as standard.
  • Two feet as standard.
  • 5mm frosted acrylic on all glazed screens.
  • Two height adjusters.

D30 INFORMATION


  • All widths quoted include posts.
  • Other sizes available.

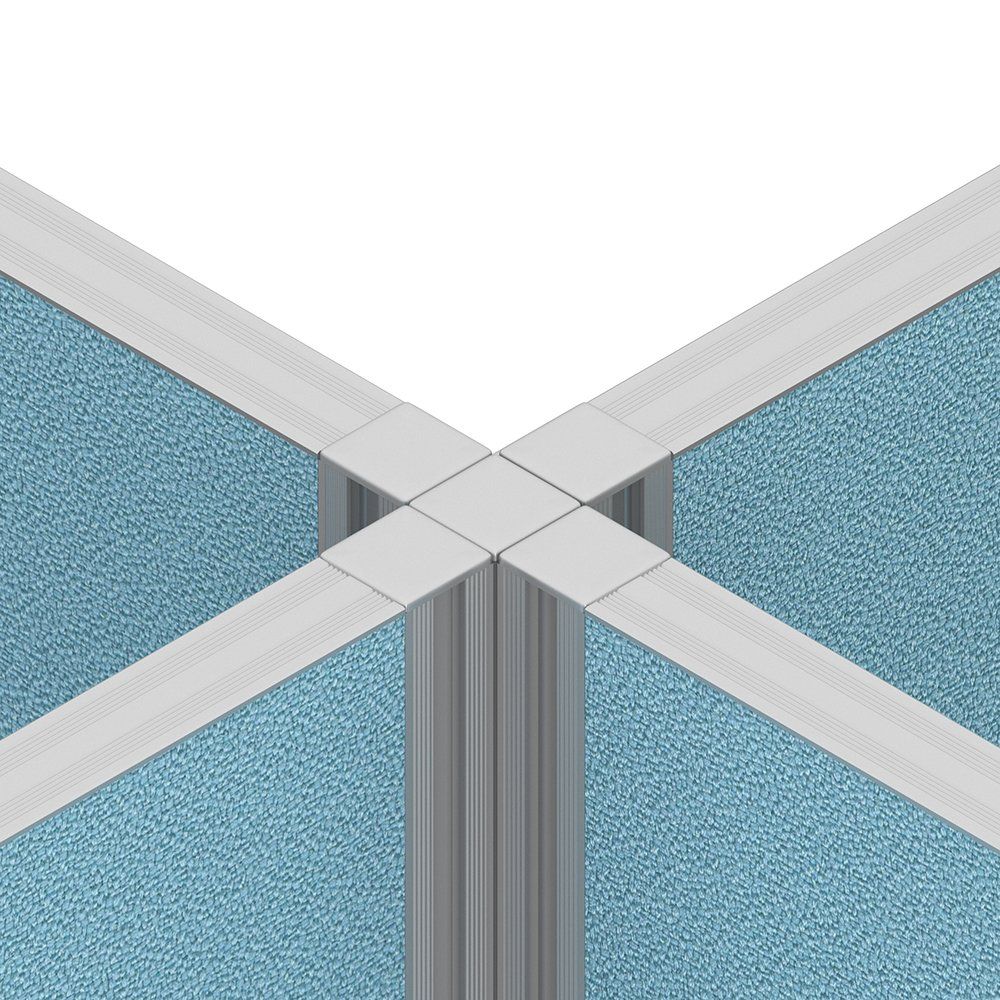

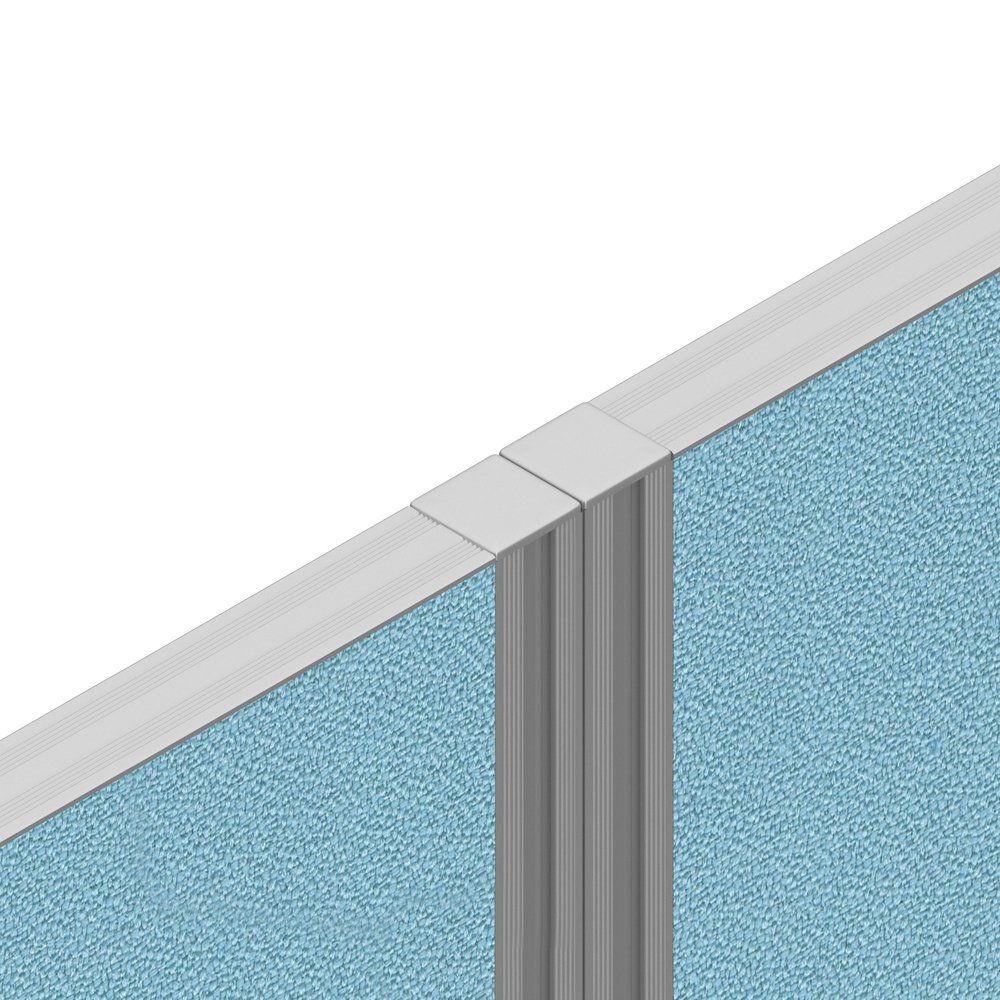

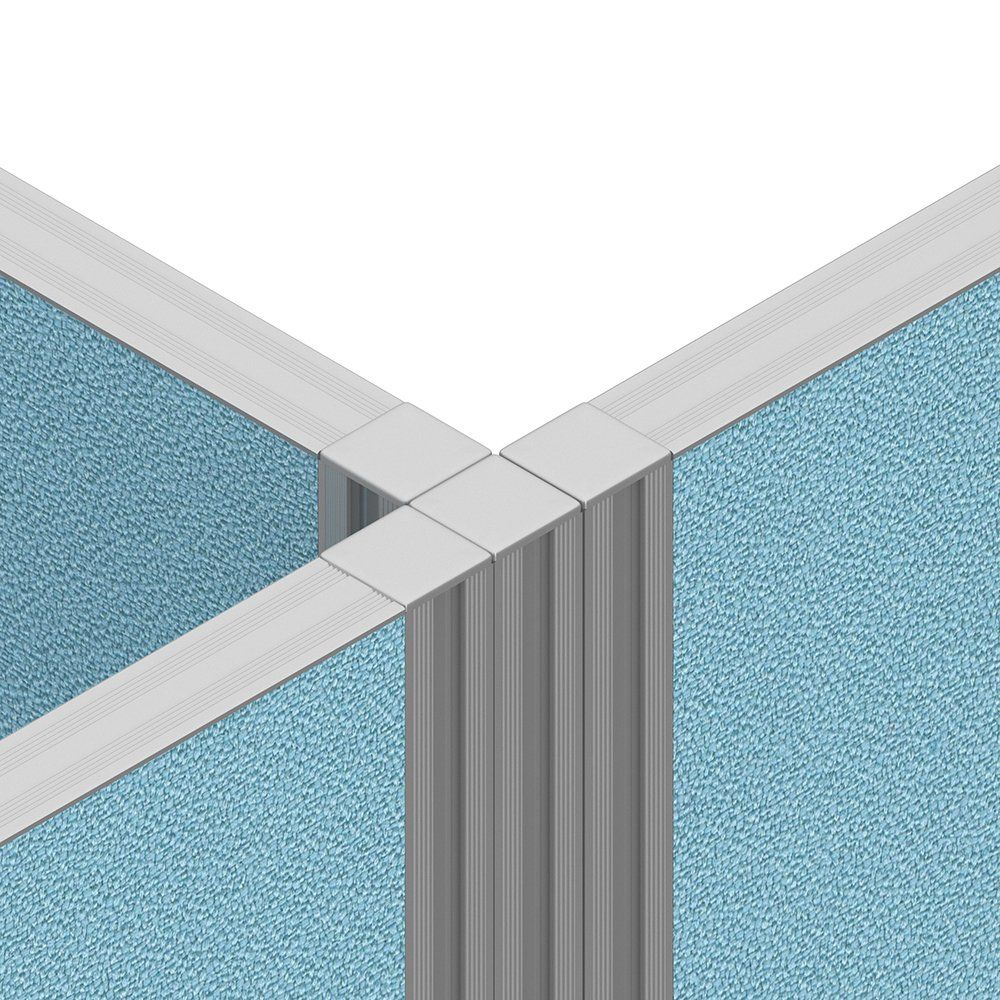

  • 2, 3 and 4 Way Linking Posts available.

LINKING OPTIONS

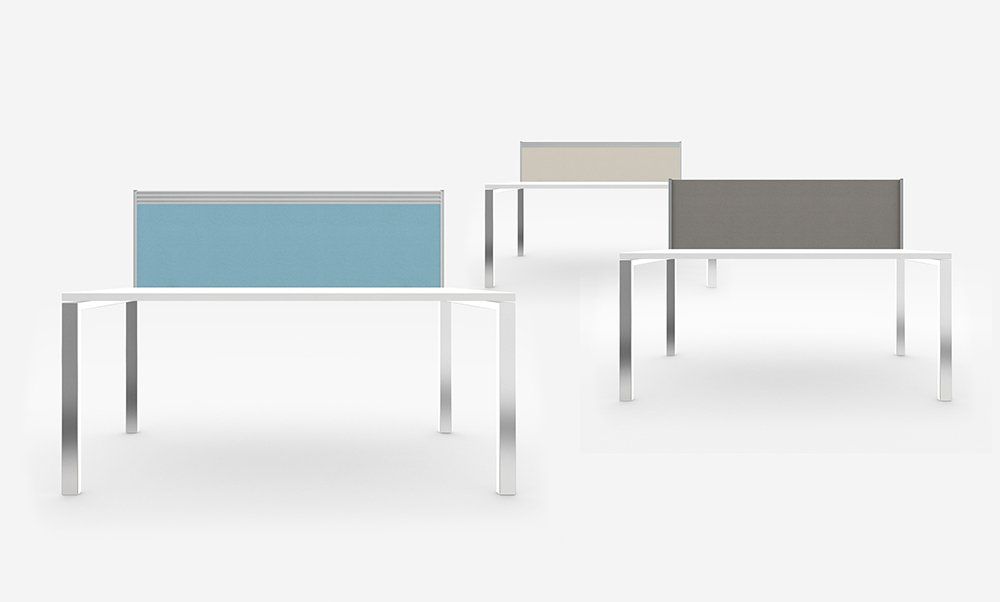

D30 DESK-MOUNTED SCREENS

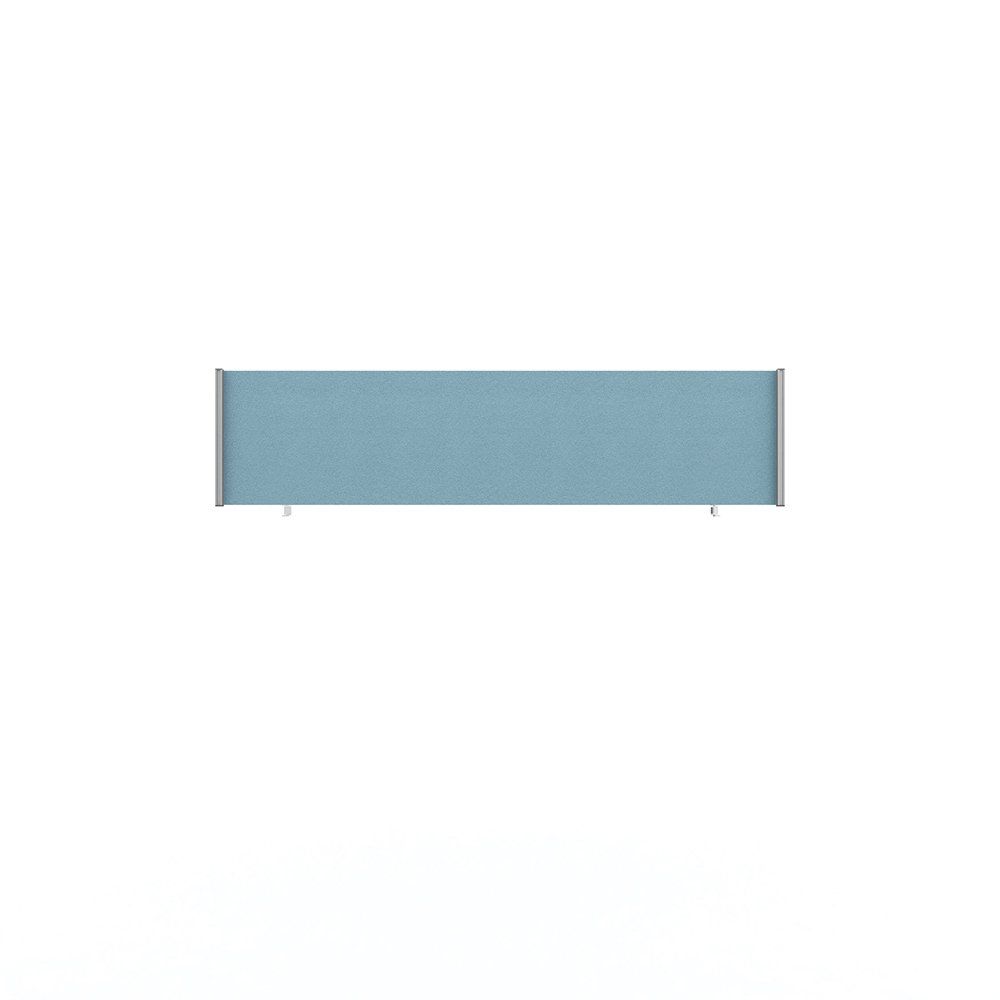

STRAIGHT 380mm HIGH

W800 , 1000, 1200, 1400, 1600, 1800 mm

CODE: D30/DMS38#

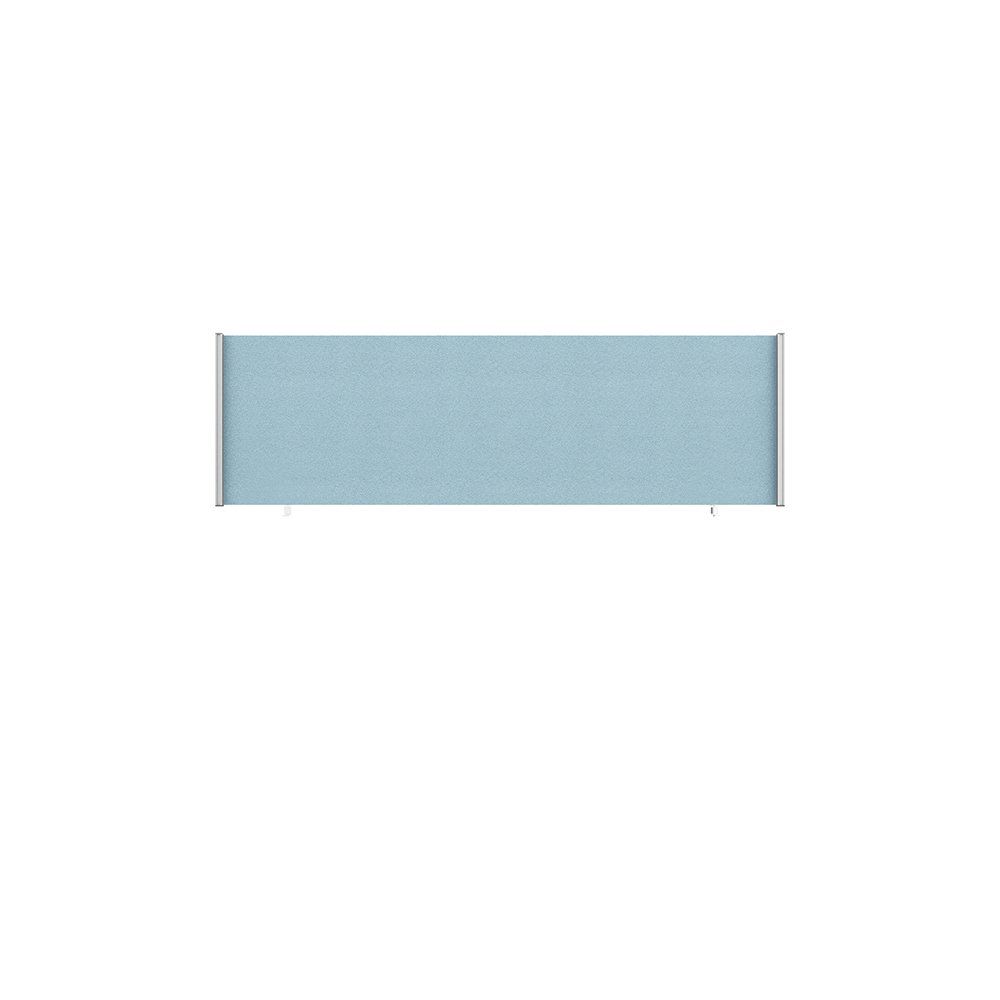

STRAIGHT 480mm HIGH

W800 , 1000, 1200, 1400, 1600, 1800 mm

CODE: D30/DMS48#

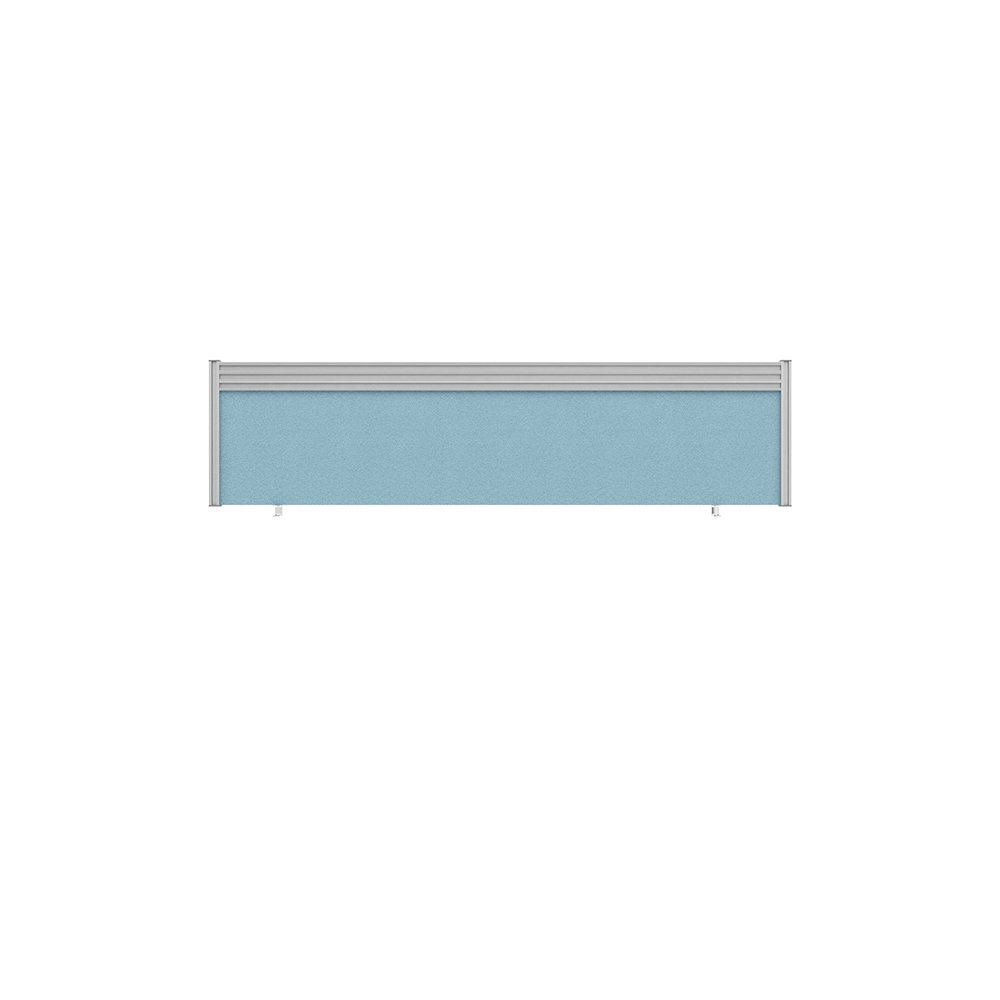

TOOLRAIL 380mm HIGH

W800 , 1000, 1200, 1400, 1600, 1800 mm

CODE: D30/DMS38#A

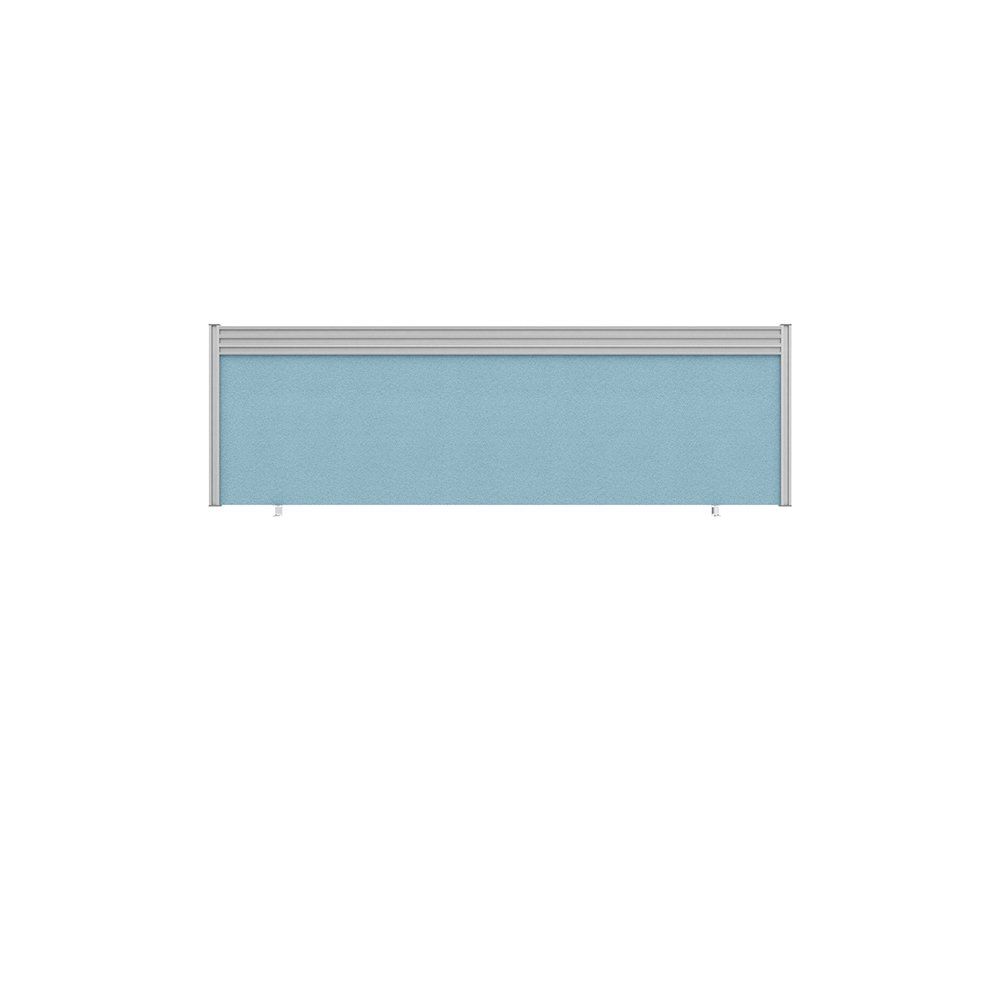

TOOLRAIL 480mm HIGH

W800 , 1000, 1200, 1400, 1600, 1800 mm

CODE: D30/DMS48#A

# IN CODE REFERS TO WIDTH CHOICE.

A 380 HIGH, 800 WIDE SCREEN WOULD BE D30/DMS388

A 480 HIGH, 1400 WIDE TOOLRAIL SCREEN WOULD BE D20/DMS4814A

D30 DESK-MOUNTED SCREENS SPECIFICATION

STANDARD SPECIFICATION


  • Silver aluminium posts only.
  • Silver post infills.
  • 32mm carcass as standard.
  • All desk mounts are supplied with standard G clamp brackets unless otherwise specified.

D30 INFORMATION



  • Other sizes available.

LINKING OPTIONS
