D10 SCREENS

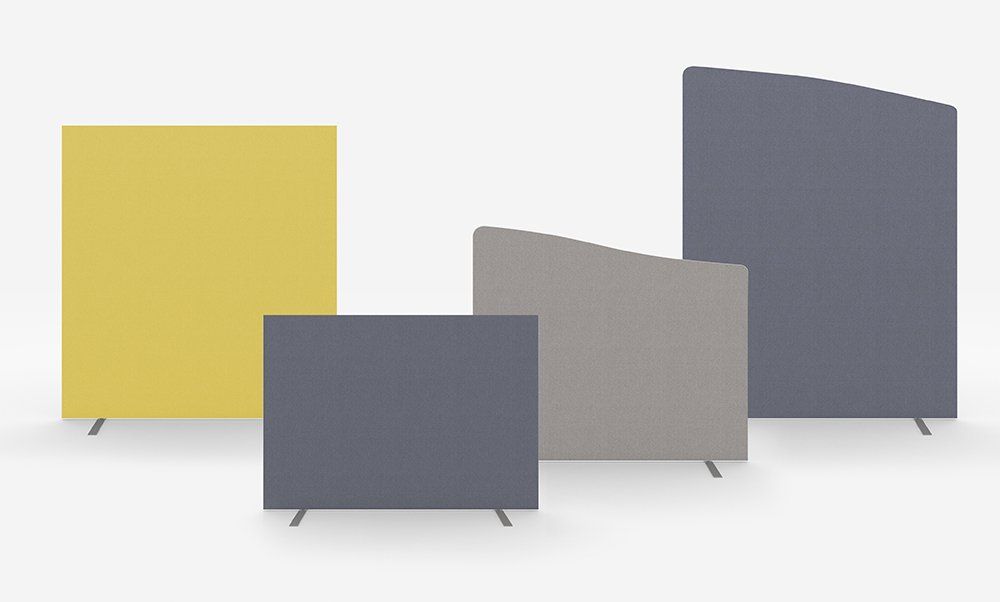

THE FREESTANDING RANGE
D10 LINKING AND NON-LINKING SCREENS

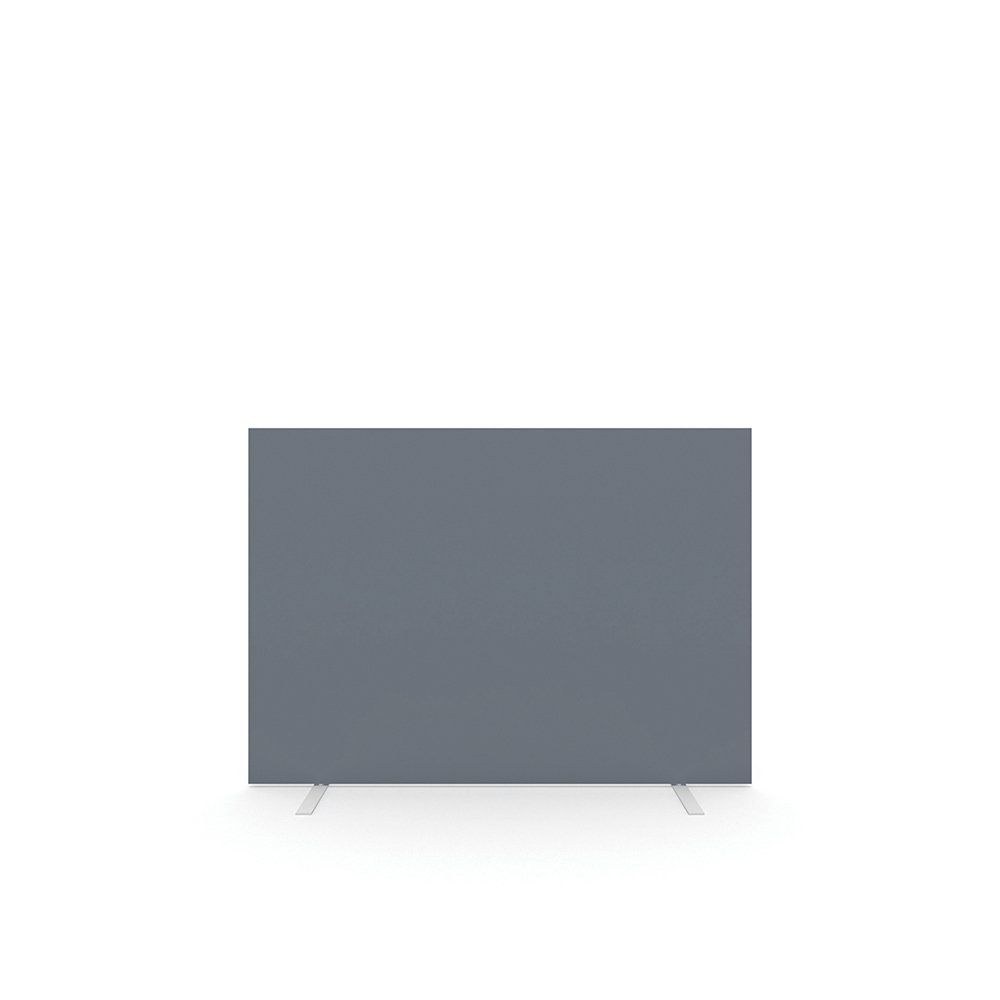

1000 mm HIGH
W800, 1000, 1200, 1400, 1500,
1600, 1800, 2000 mm

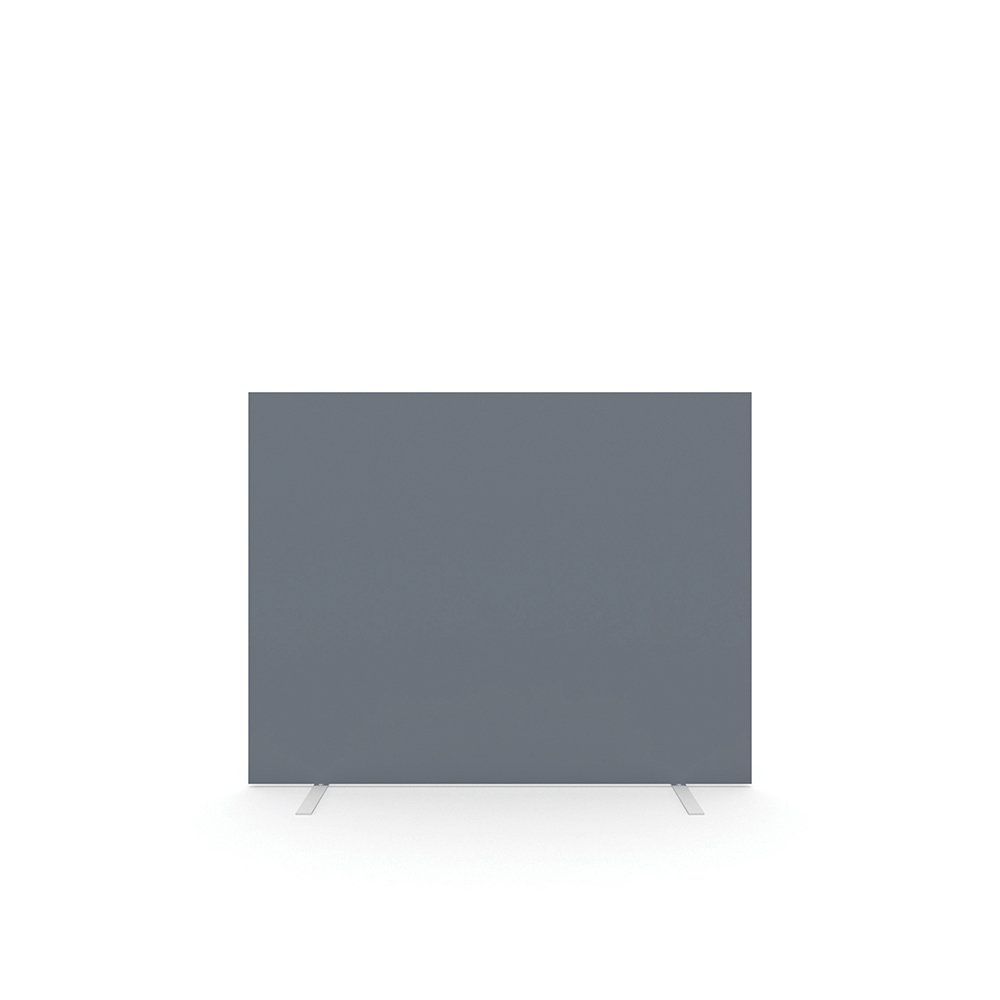

1100 mm HIGH
W800, 1000, 1200, 1400, 1500,
1600, 1800, 2000 mm

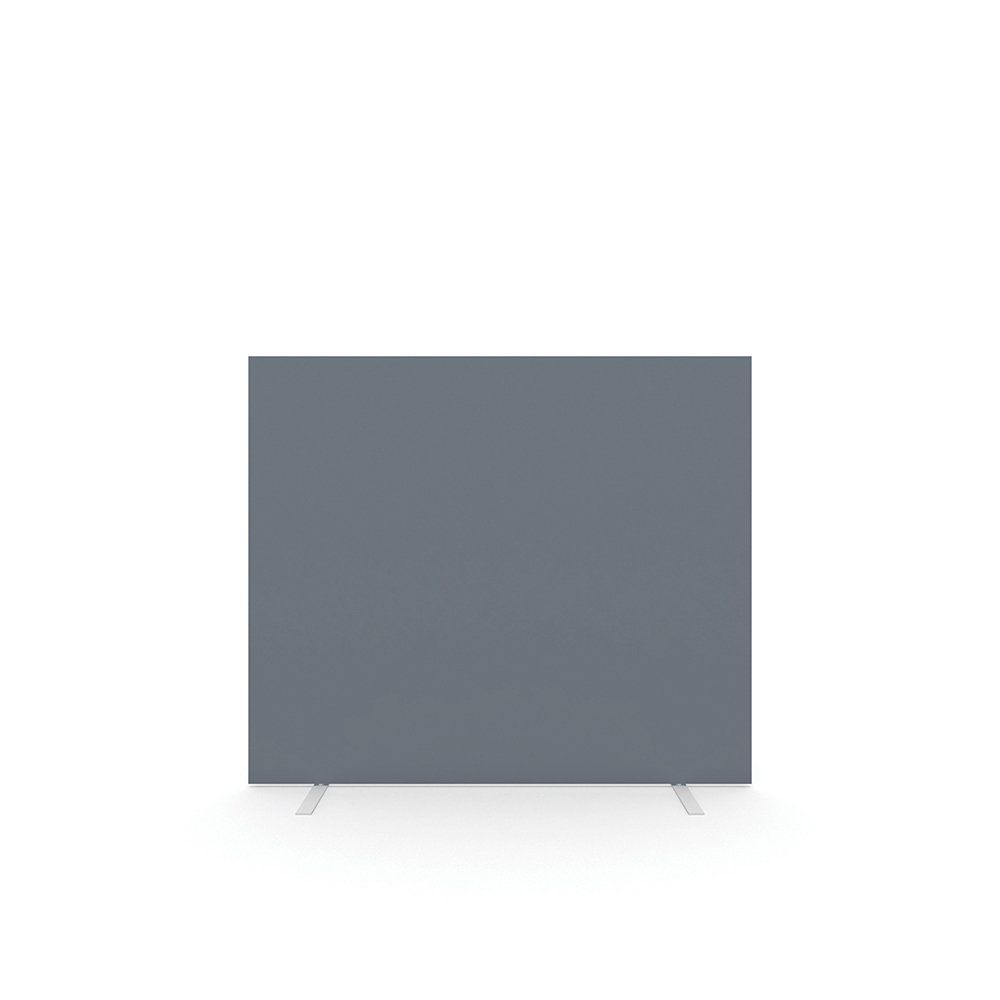

1200 mm HIGH
W800, 1000, 1200, 1400, 1500,
1600, 1800, 2000 mm

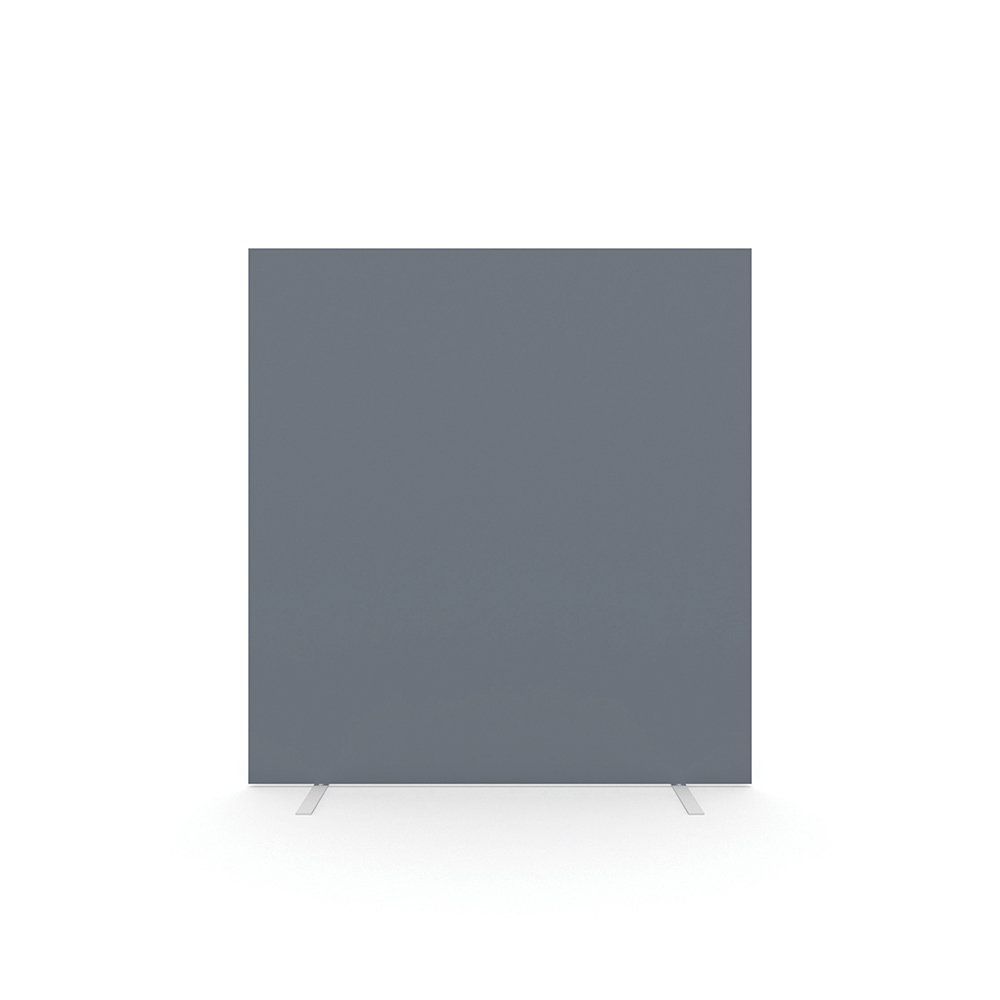

1500 mm HIGH
W800, 1000, 1200, 1400, 1500,
1600, 1800, 2000 mm

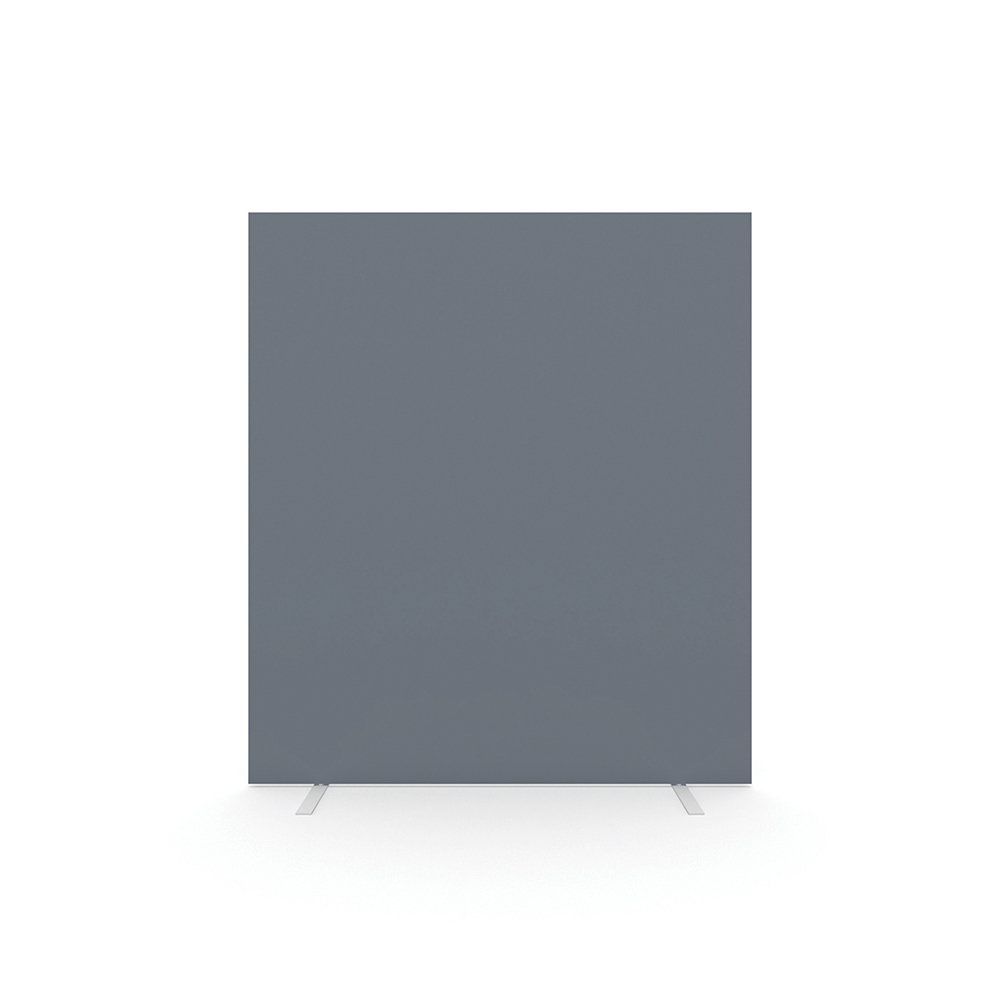

1600 mm HIGH
W800, 1000, 1200, 1400, 1500,
1600, 1800 mm

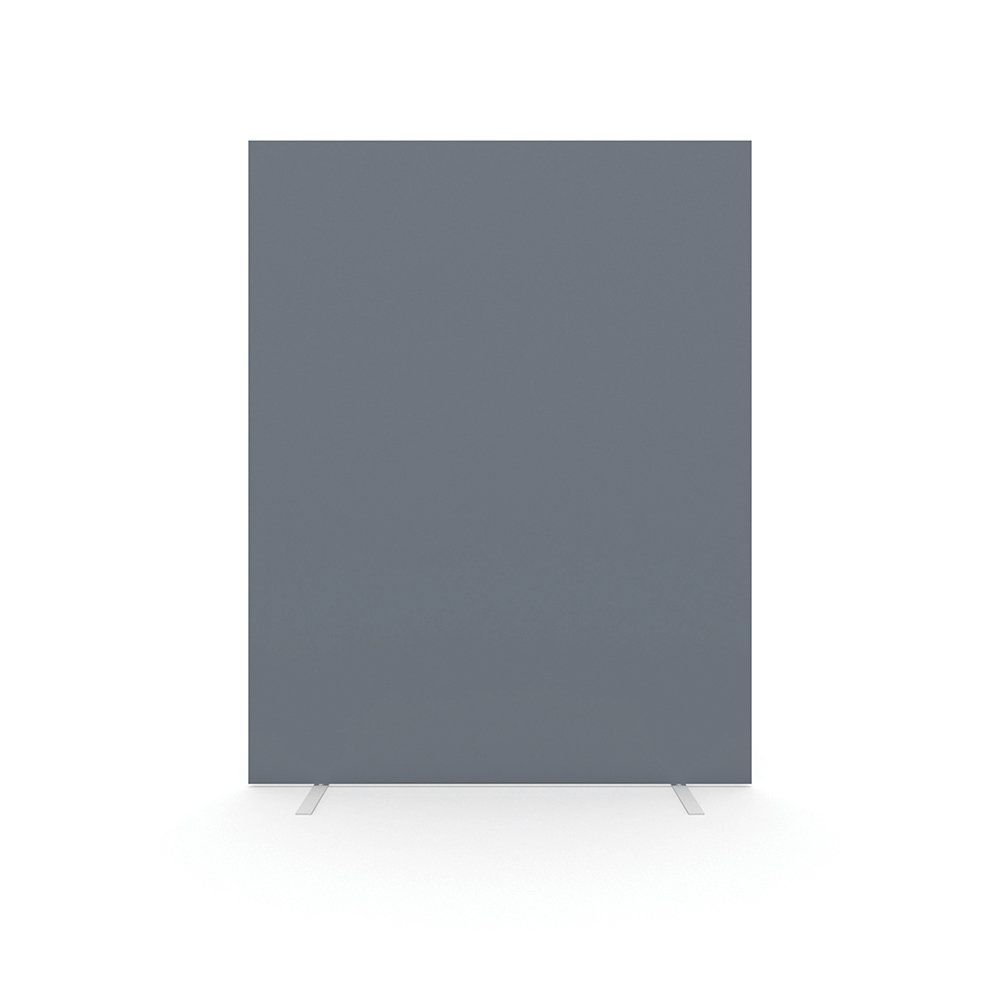

1800 mm HIGH
W800, 1000, 1200, 1400, 1500,
1600 mm

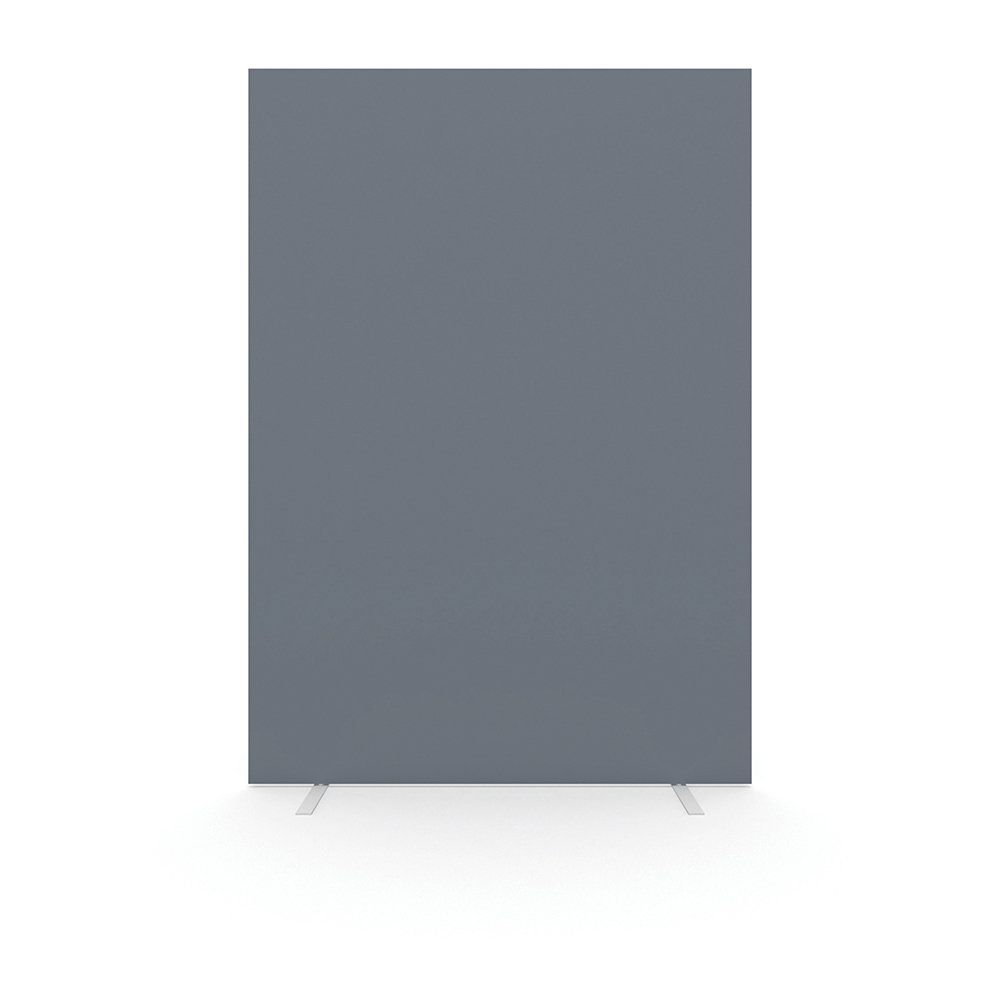

2000 mm HIGH
W800, 1000, 1200, 1400, 1500,
1600 mm

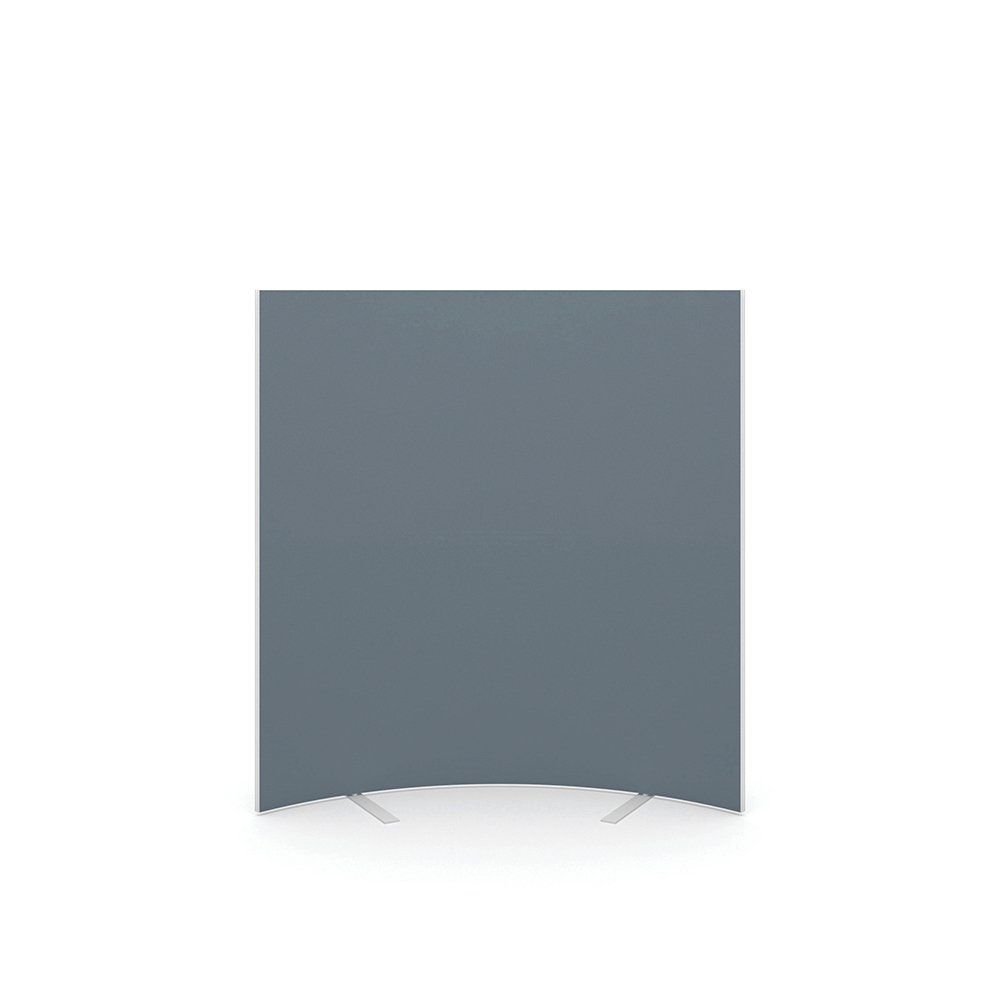

800mm RADIUS 90º
H1000, 1100, 1200, 1500,
1600, 1800 mm
D10 FREESTANDING HEIGHT CHANGE SCREENS

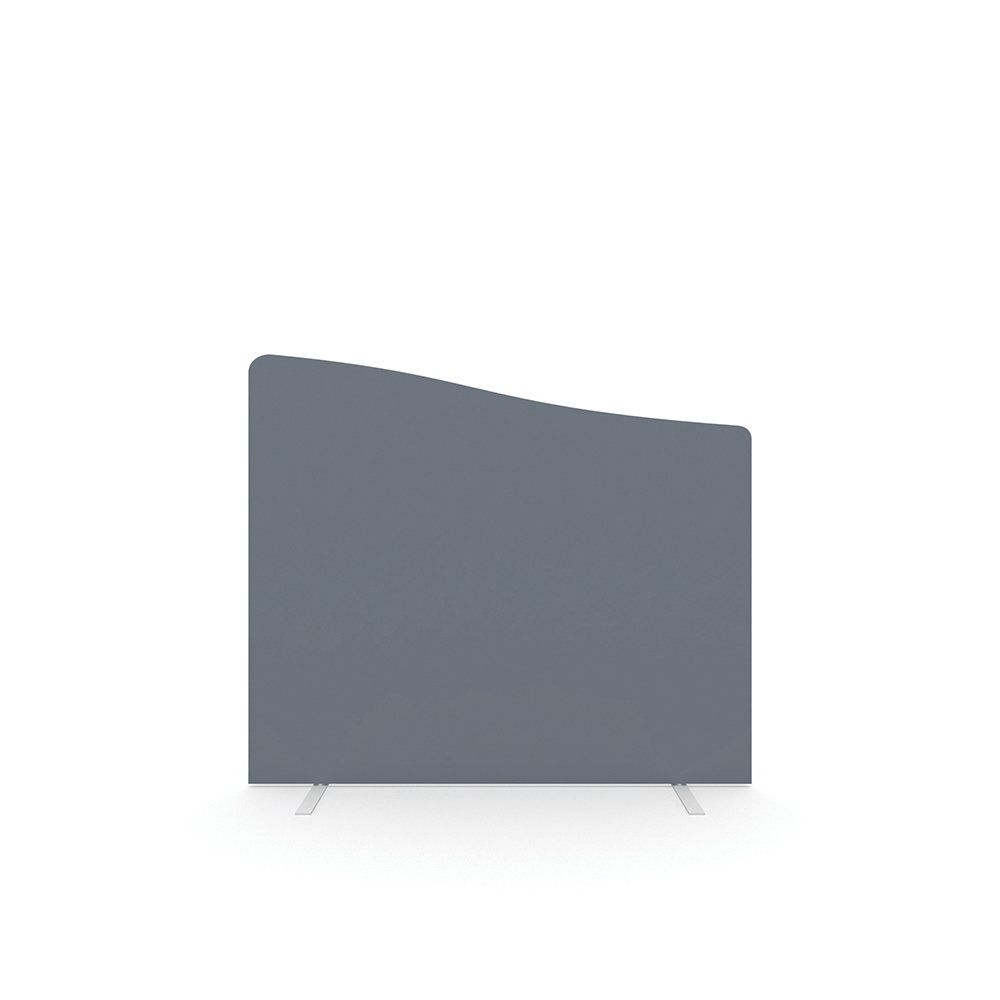

WAVE 1200 – 1000 mm HIGH
W800, 1000, 1200, 1400,
1600, 1800 mm

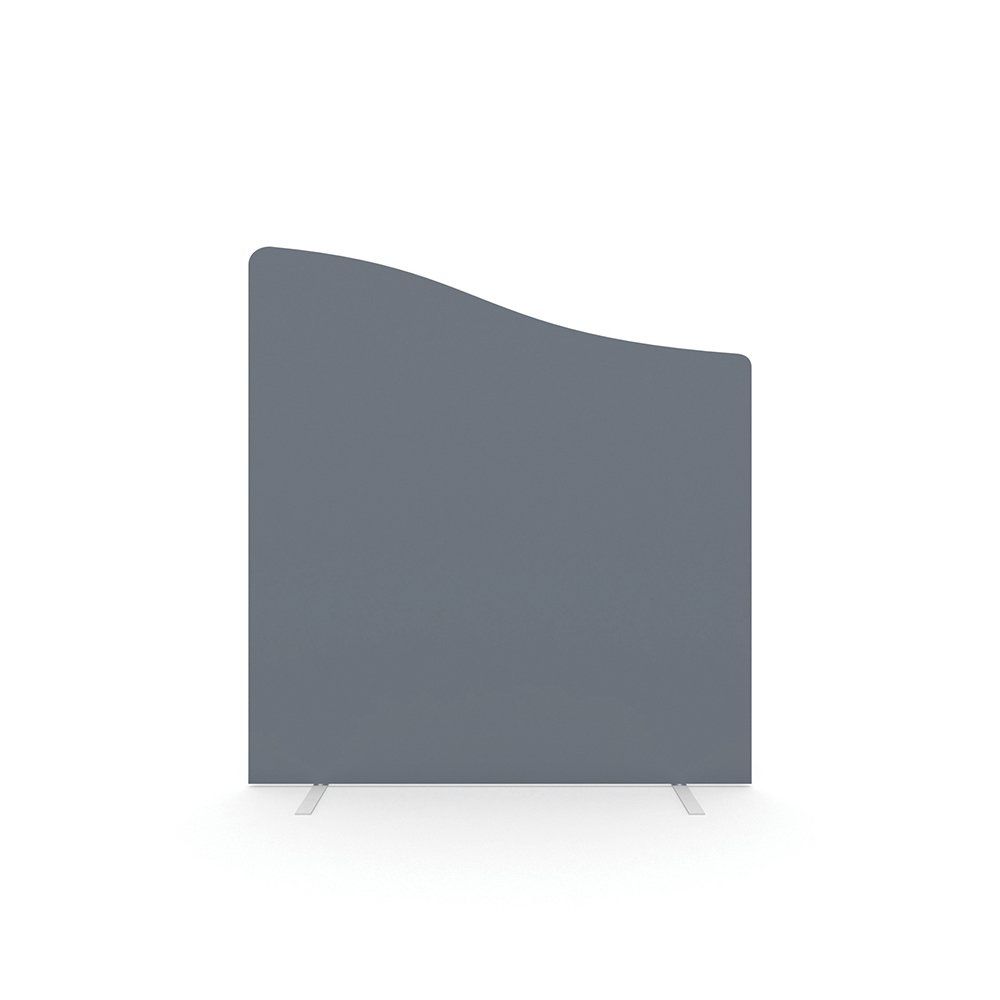

WAVE 1500 – 1200 mm HIGH
W800, 1000, 1200, 1400,
1600, 1800 mm

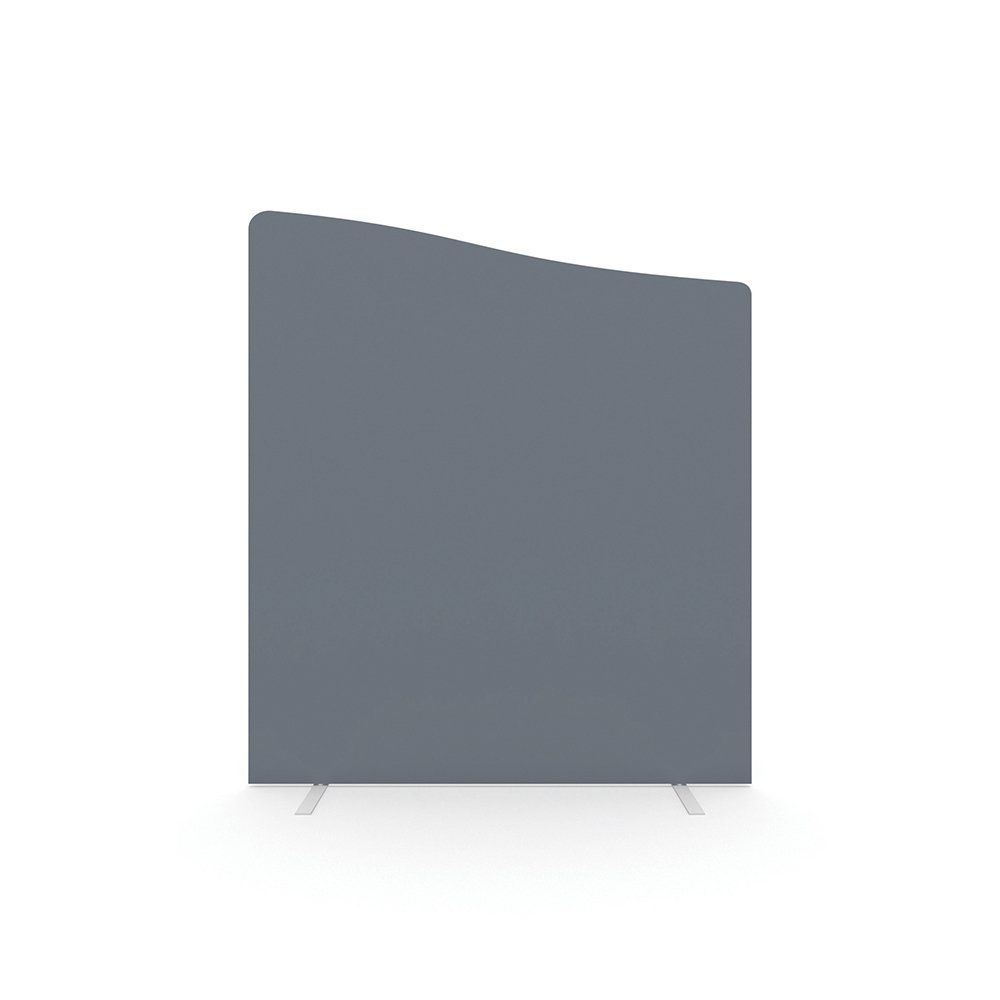

WAVE 1600 – 1400 mm HIGH
W800, 1000, 1200, 1400,
1600, 1800 mm

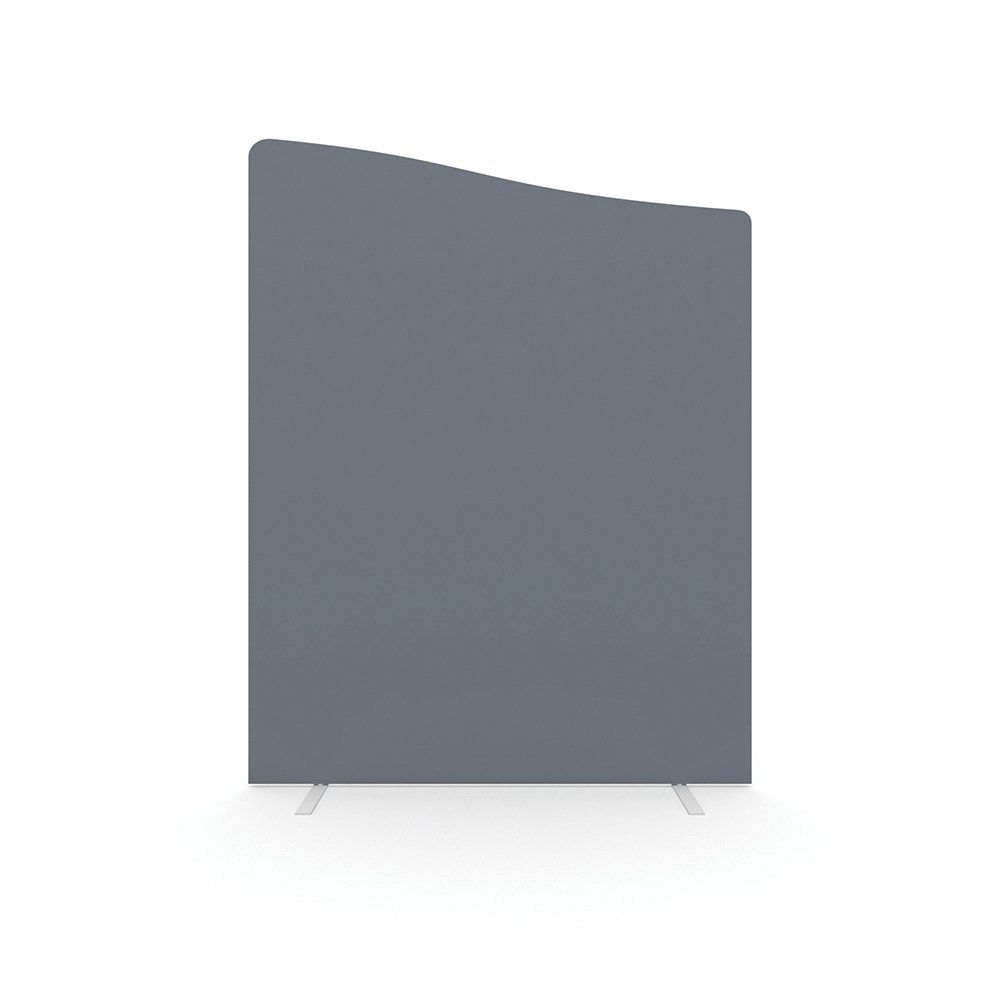

WAVE 1800 – 1600 mm HIGH
W800, 1000, 1200,
1400, 1600 mm

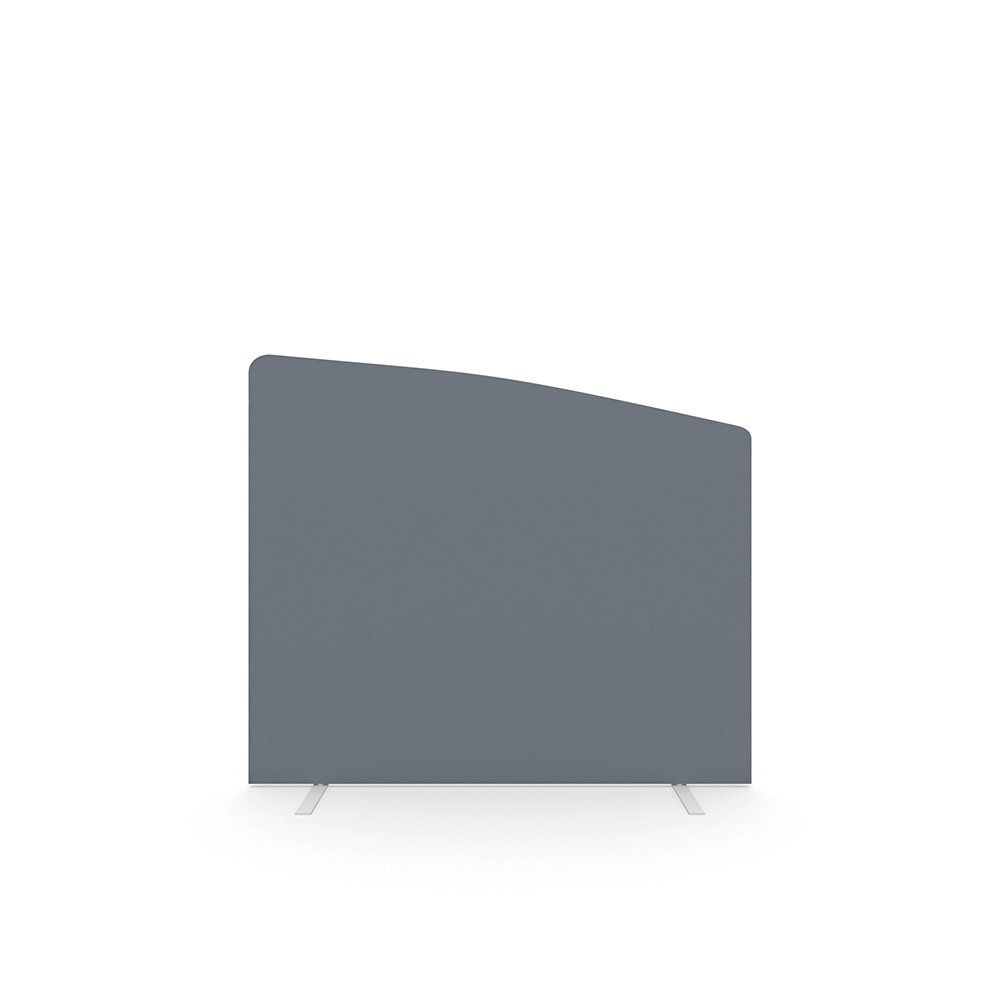

CURVE 1200 – 1000 mm HIGH
W800, 1000, 1200, 1400,
1600, 1800 mm

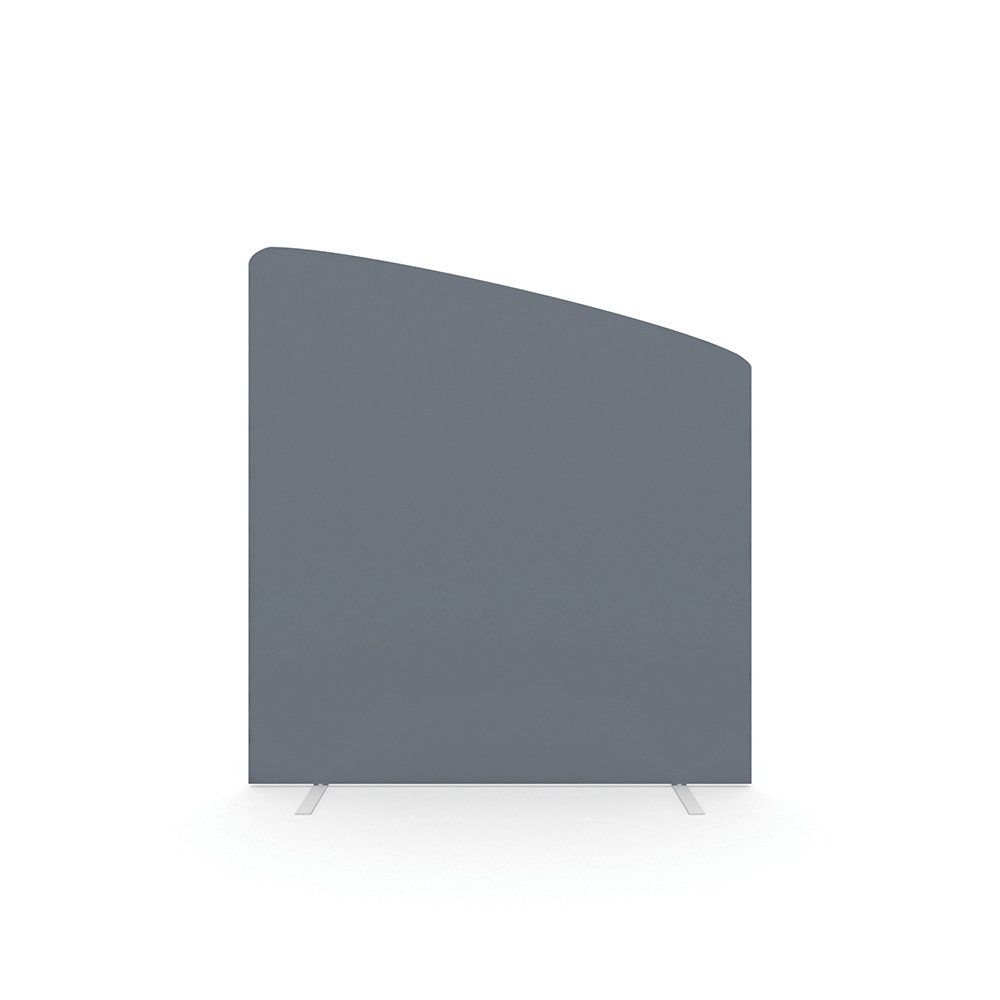

CURVE 1500 – 1200 mm HIGH
W800, 1000, 1200, 1400,
1600, 1800 mm

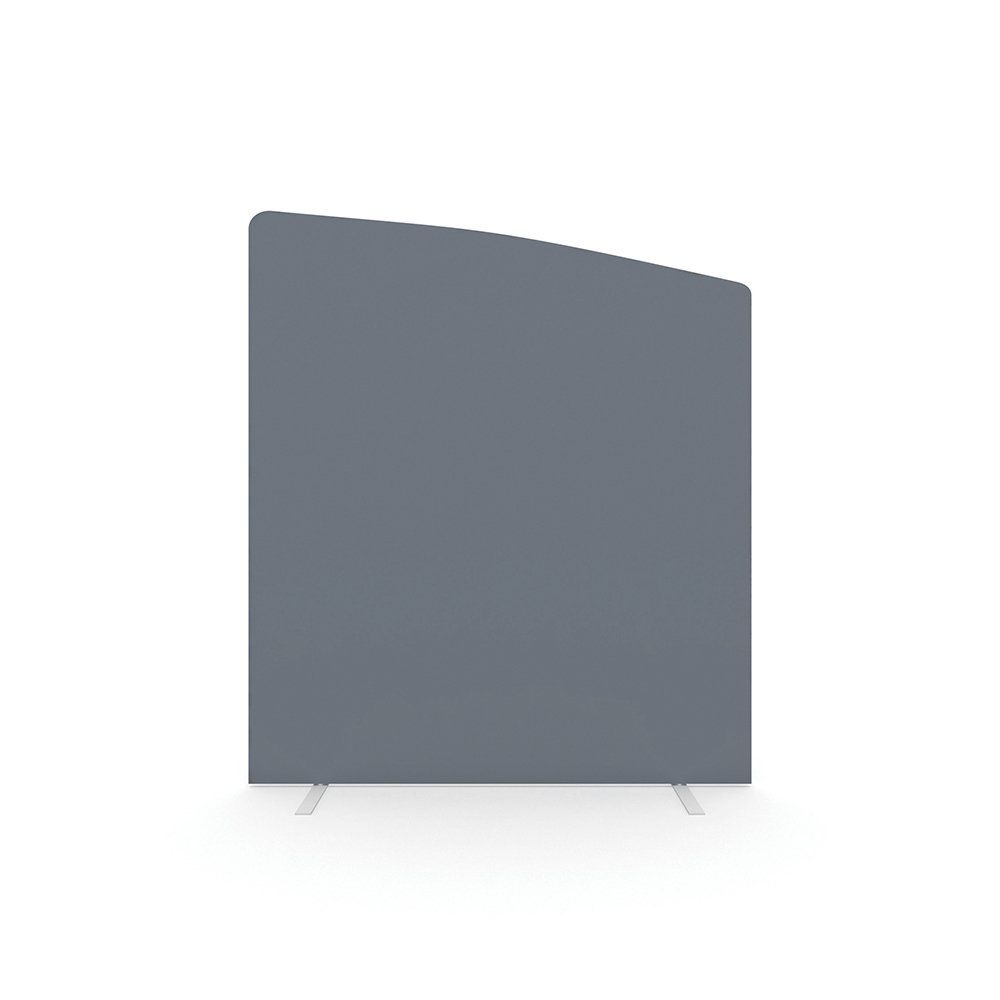

CURVE 1600 – 1400 mm HIGH
W800, 1000, 1200, 1400,
1600, 1800 mm

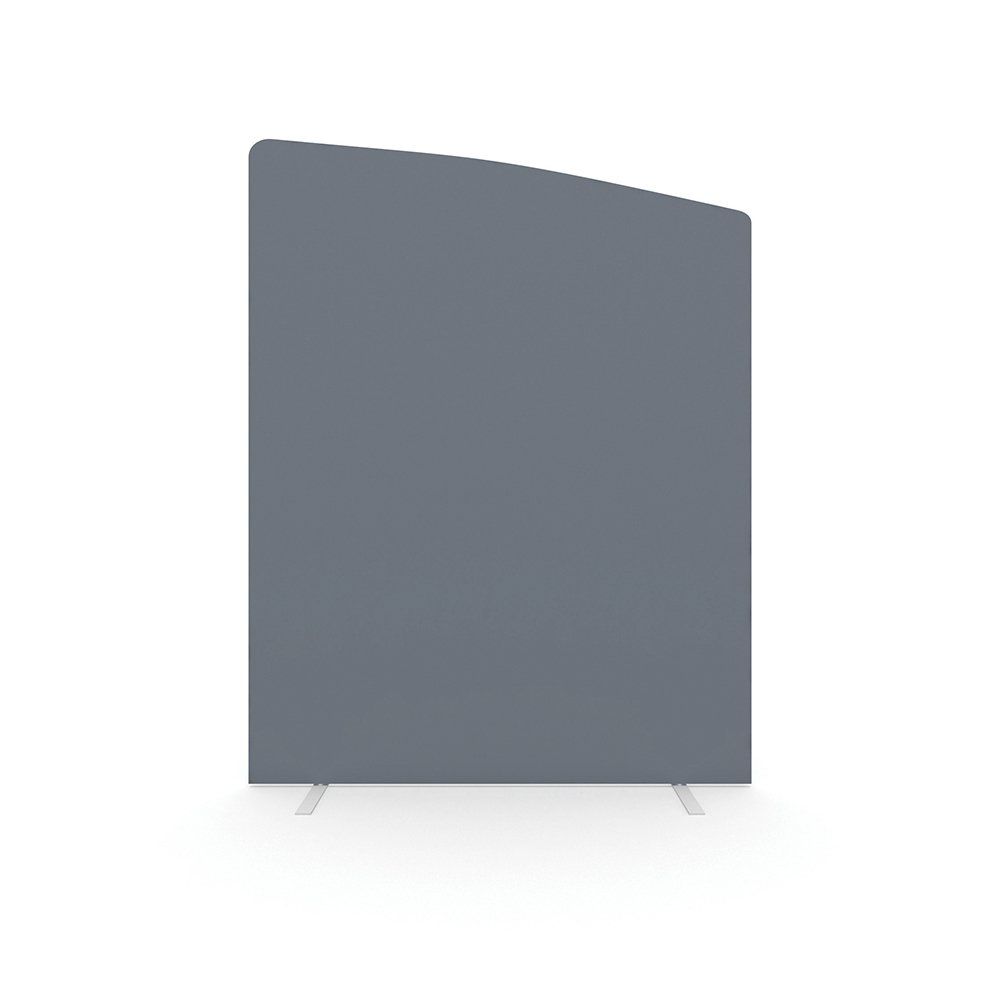

CURVE 1800 – 1600 mm HIGH
W800, 1000, 1200, 1400, 1600 mm
D10 FREESTANDING SCREENS SPECIFICATION
STANDARD SPECIFICATION
- PVC trim.
- PVC linking.
- 30mm carcass.
- Two height adjusters.
- Free-standing screens: plastic trim & two feet.
- Linking screens: one linking strip & one foot.
D10 INFORMATION
- Trim options: black, silver, light grey, dark grey, white.
- Linking option: black, silver, light grey, dark grey.
- All feet are dark grey as standard.
- Any size available.
- Width of linking screen includes linking trim.
- Use next price up for odd sizes.

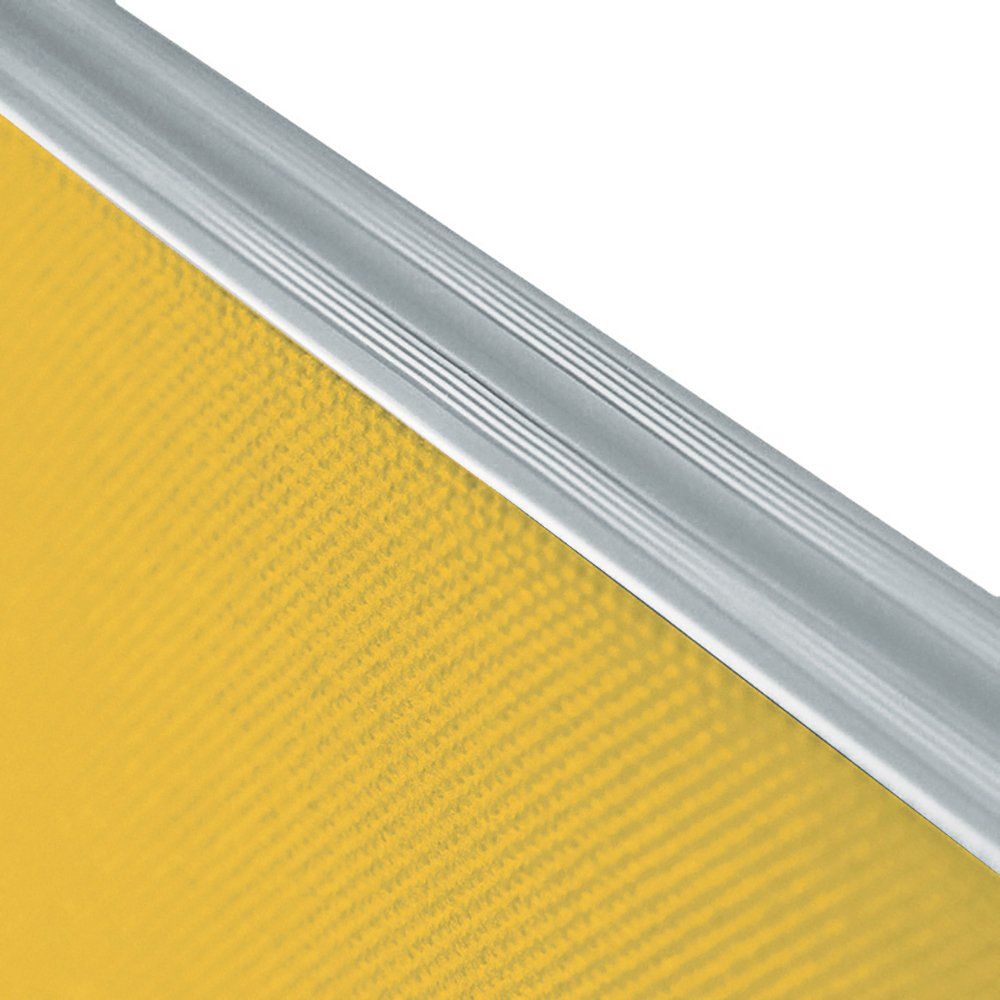

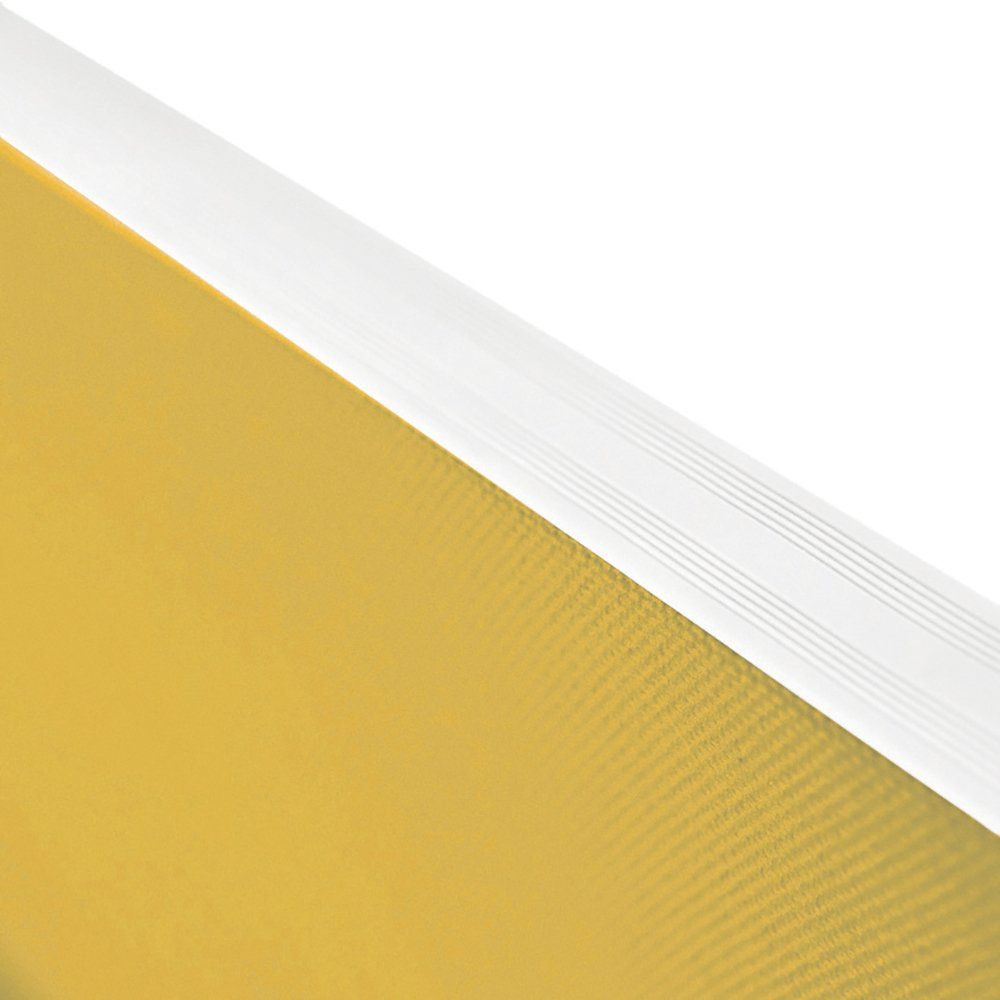

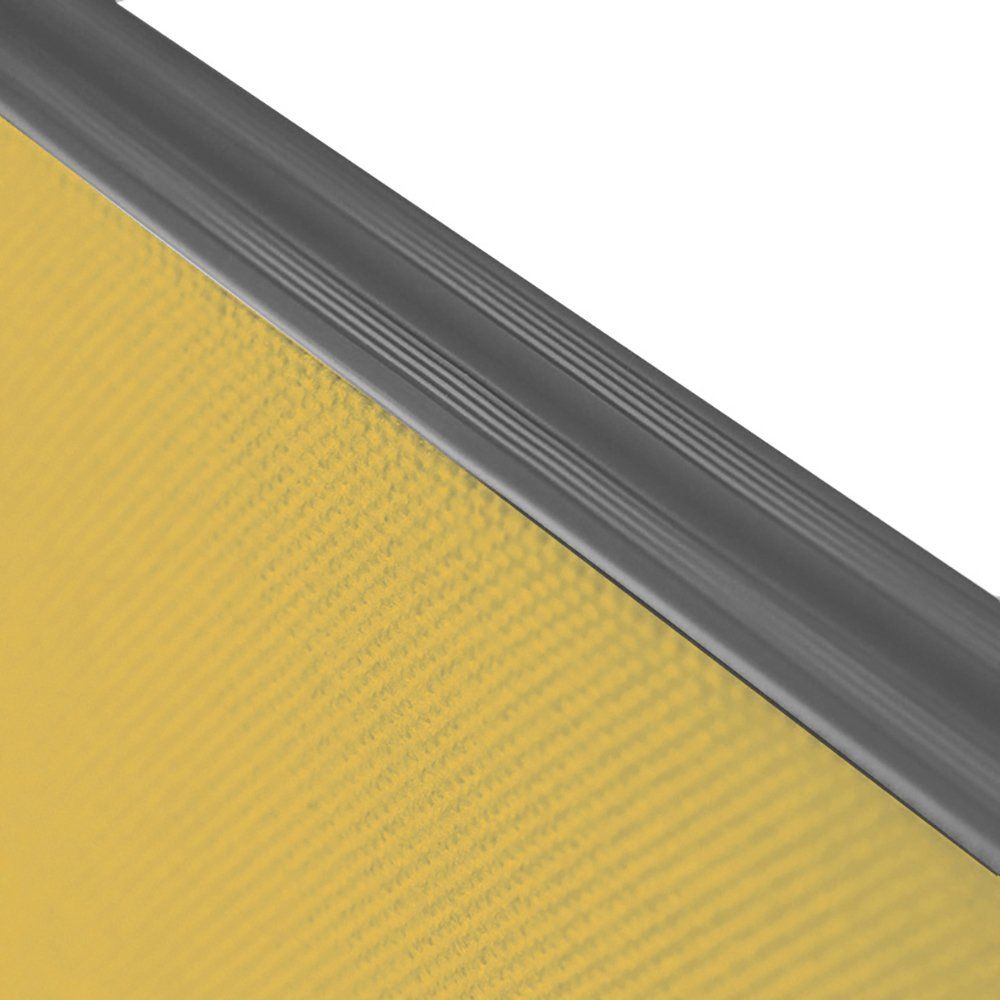

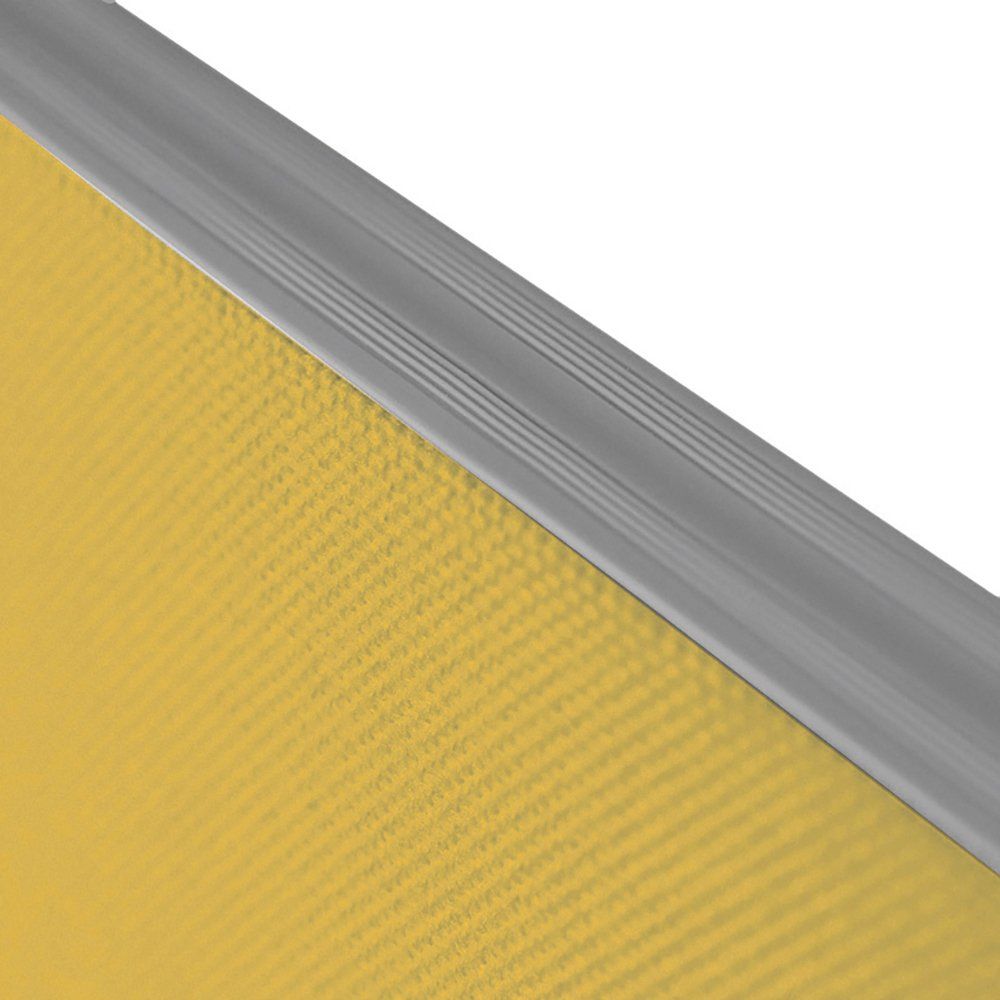

TRIM OPTIONS

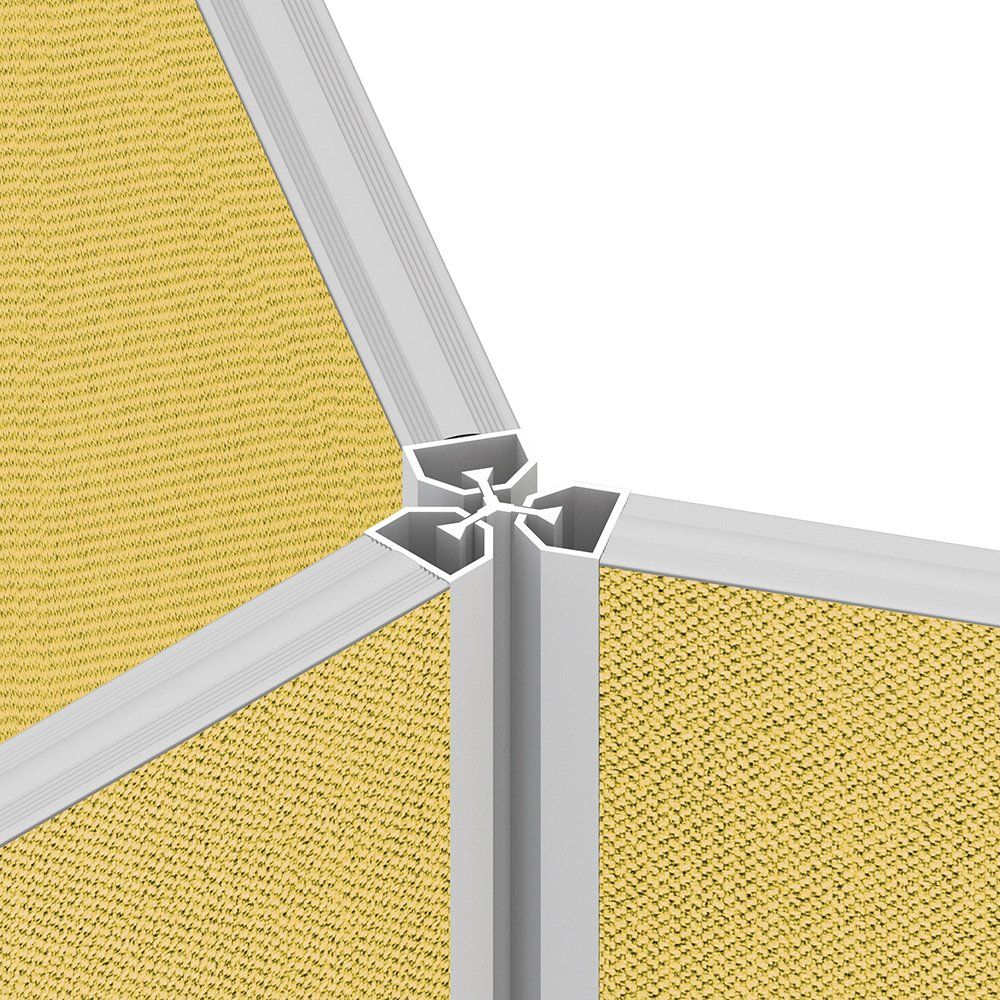

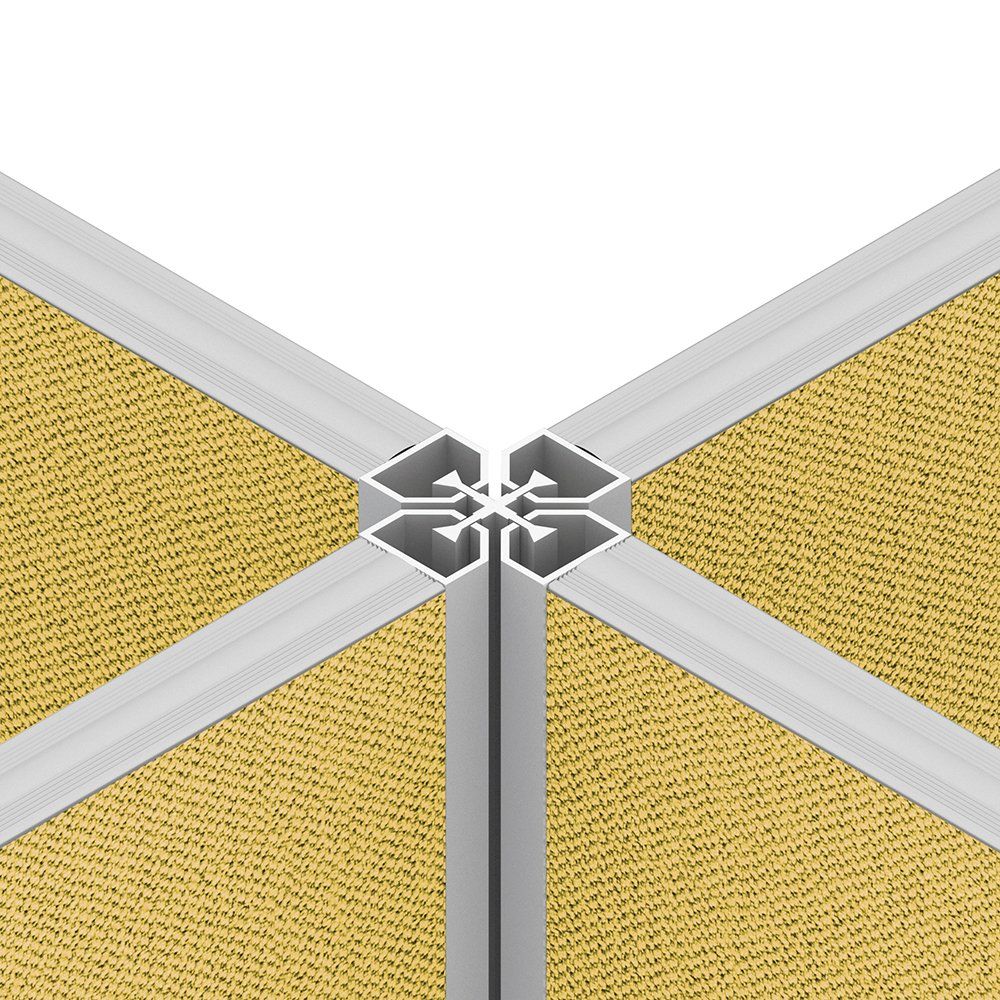

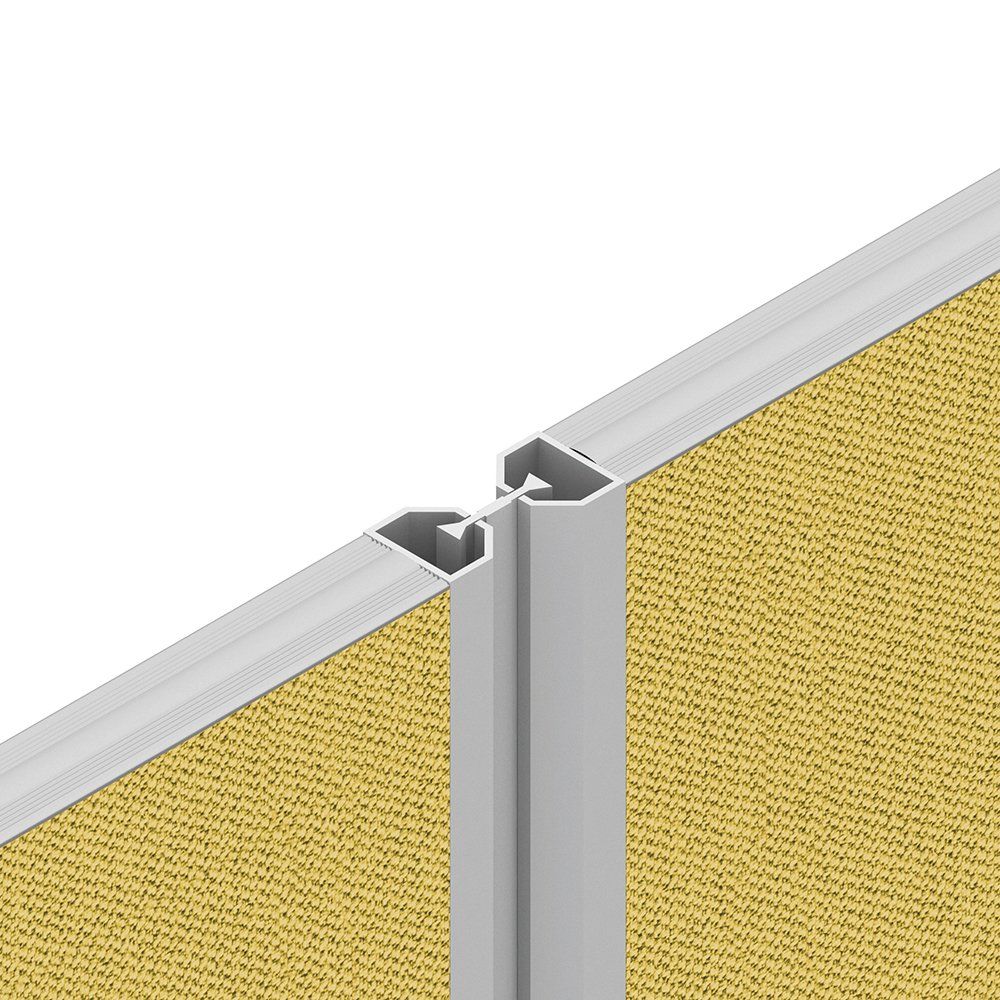

LINKING OPTIONS

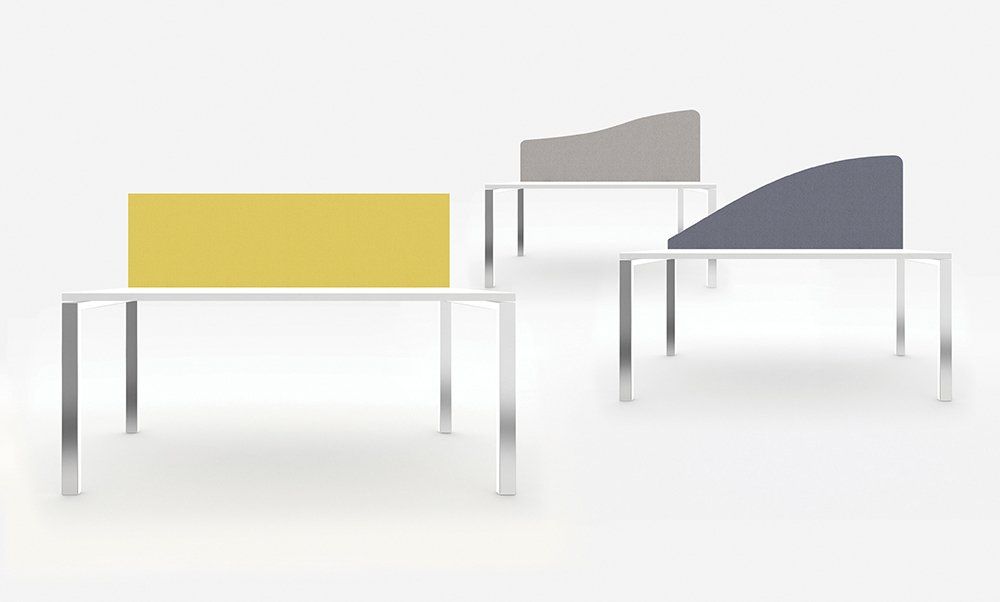

THE DESK-MOUNTED RANGE
D10 FABRIC SCREENS WITH PLASTIC TRIM OPTIONS

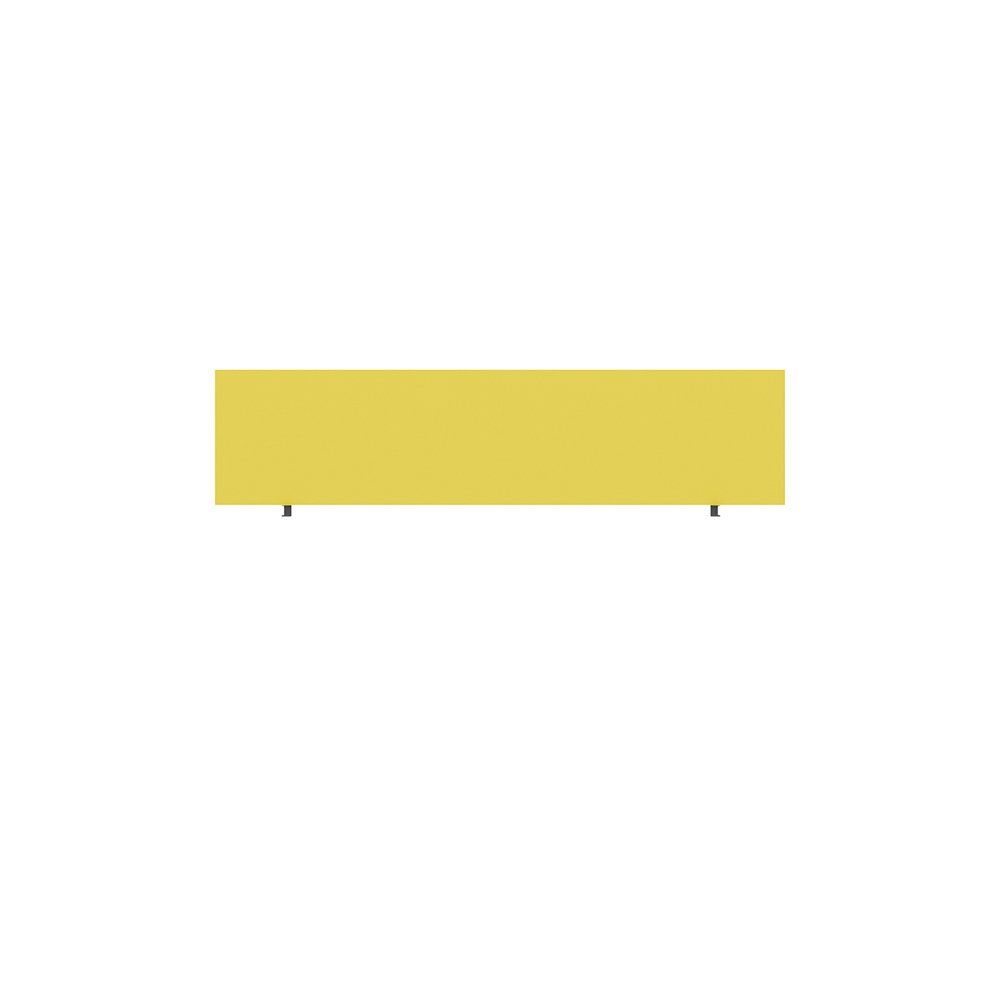

STRAIGHT 380mm HIGH
W800 , 1000, 1200, 1400, 1600,
1800, 2000, 2200 mm

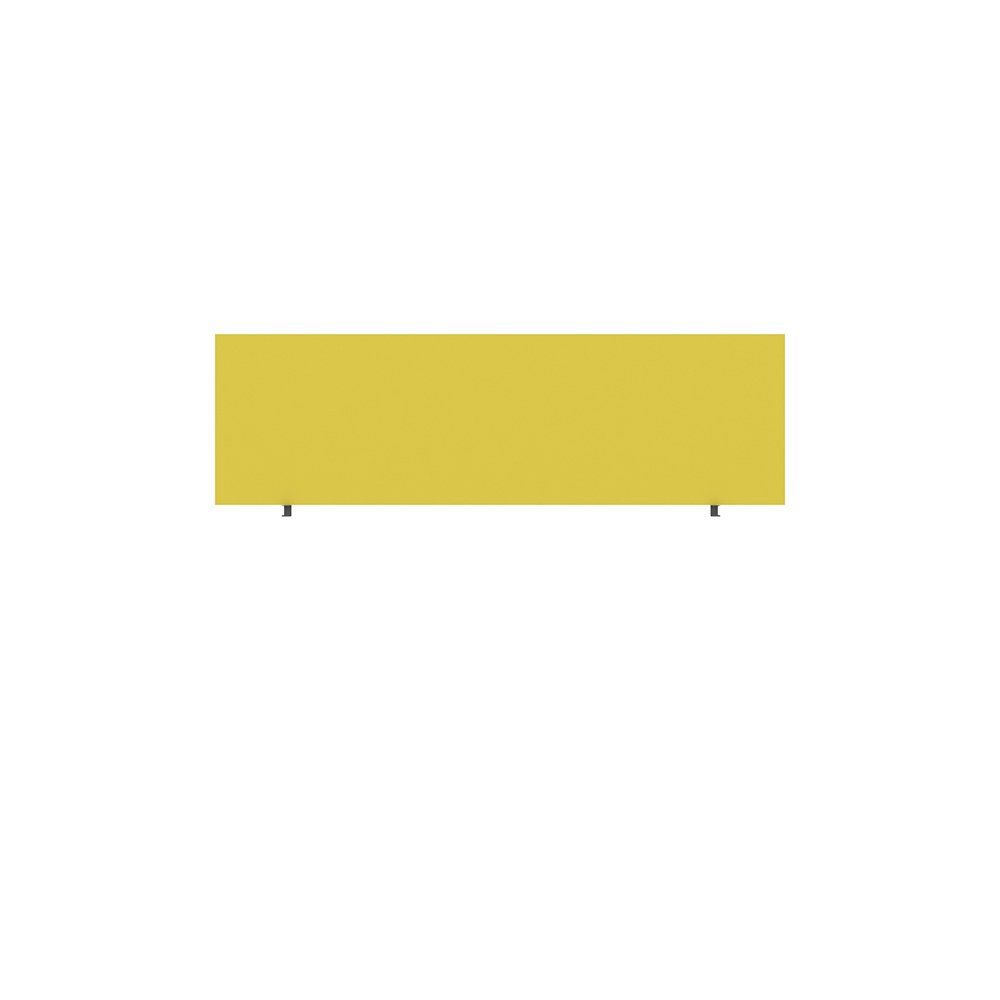

STRAIGHT 480mm HIGH
W800 , 1000, 1200, 1400, 1600,
1800, 2000, 2200 mm

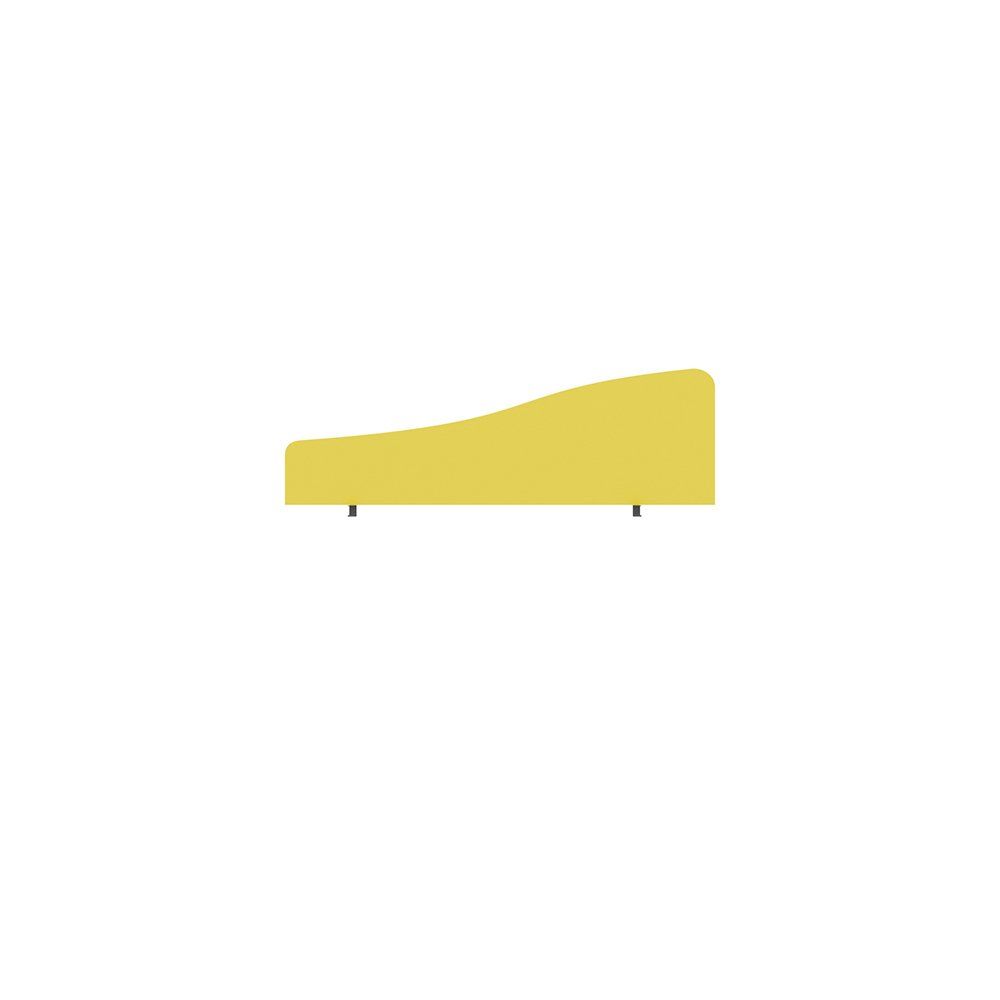

WAVE 380-180mm HIGH
W800 , 1000, 1200, 1400, 1600,
1800, 2000, 2200 mm

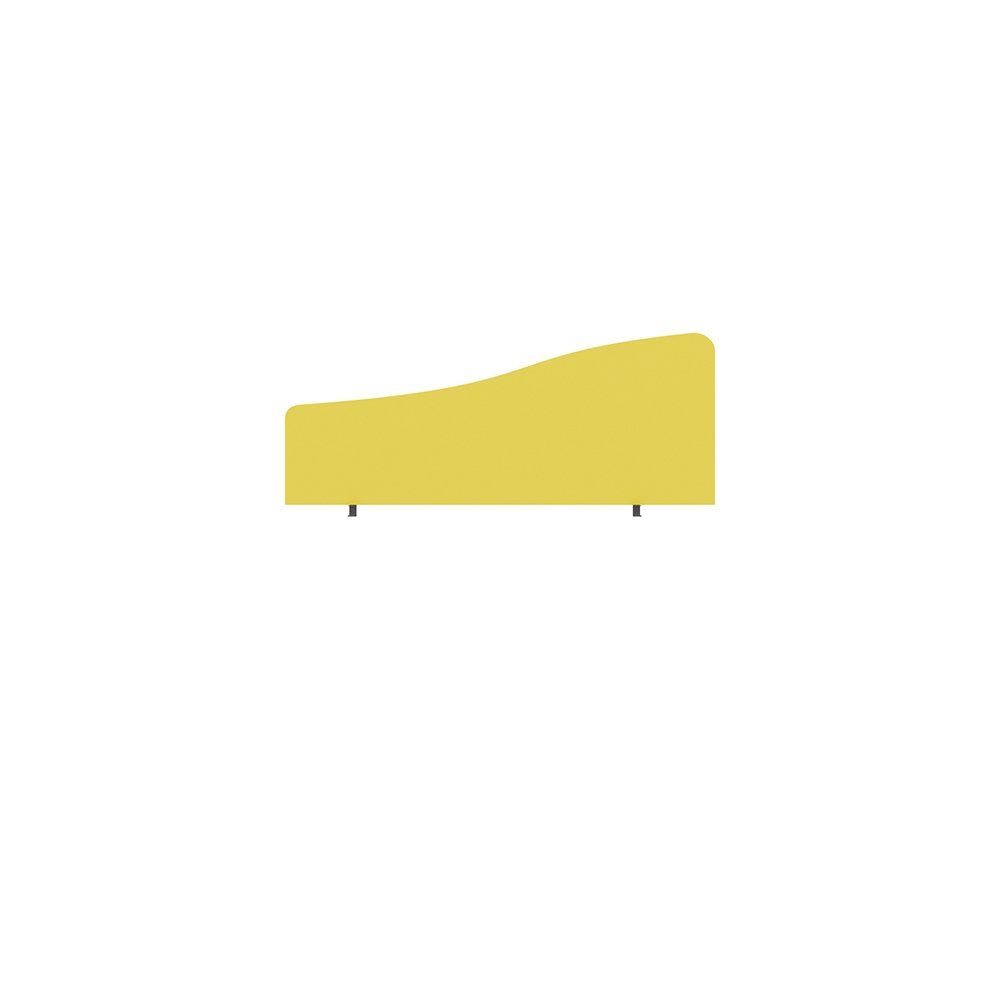

WAVE 480-280mm HIGH
W800 , 1000, 1200, 1400, 1600,
1800, 2000, 2200 mm

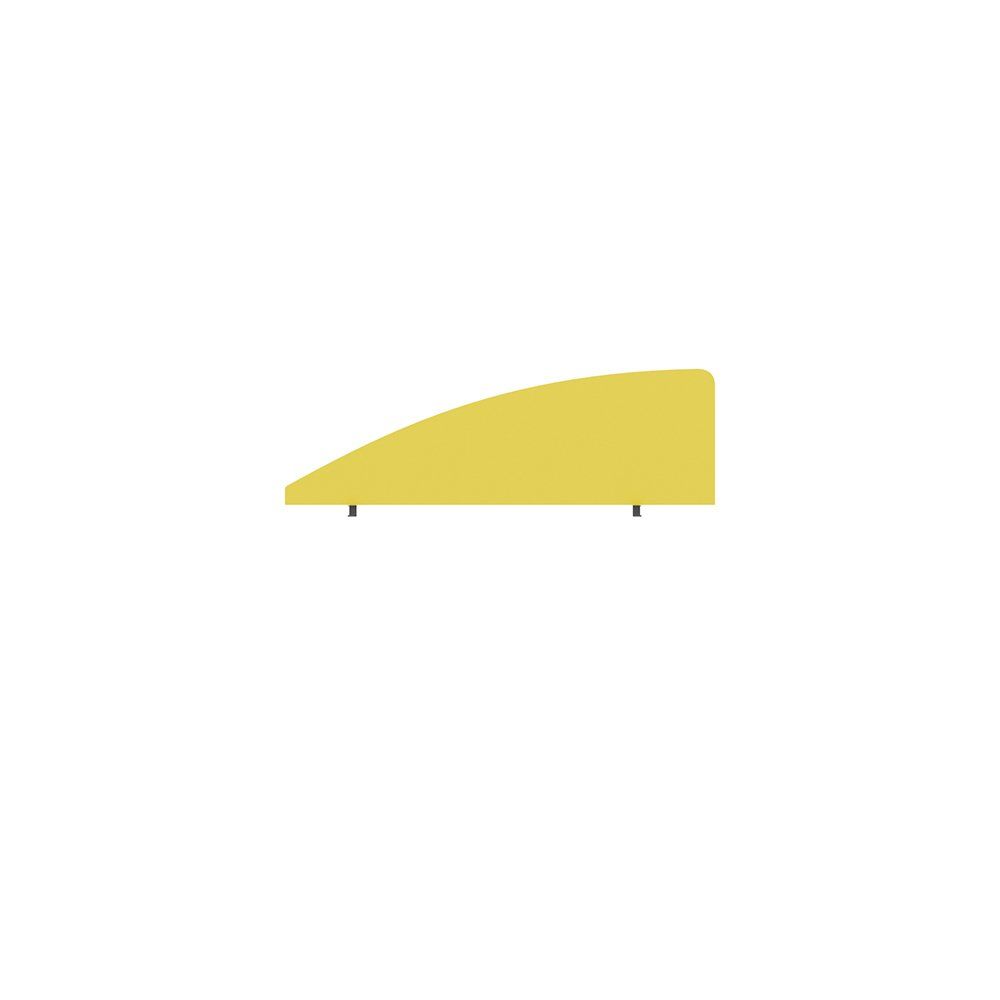

CURVE 380-180mm HIGH
W800 , 1000, 1200, 1400, 1600,
1800, 2000, 2200 mm

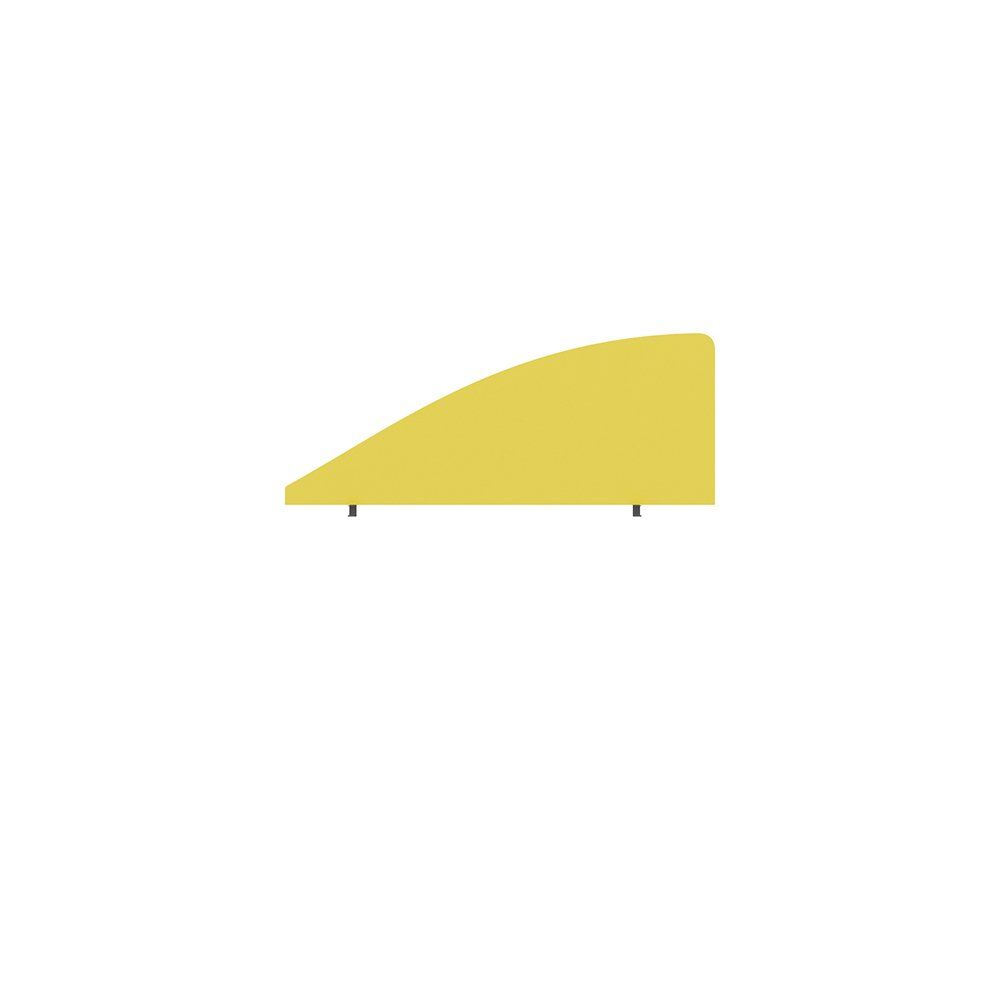

CURVE 480-280mm HIGH
W800 , 1000, 1200, 1400, 1600,
1800, 2000, 2200 mm
